2D:6 QR CODE PDF417 Data Matrix QR Code HanXin AZTEC Maxicode
1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32

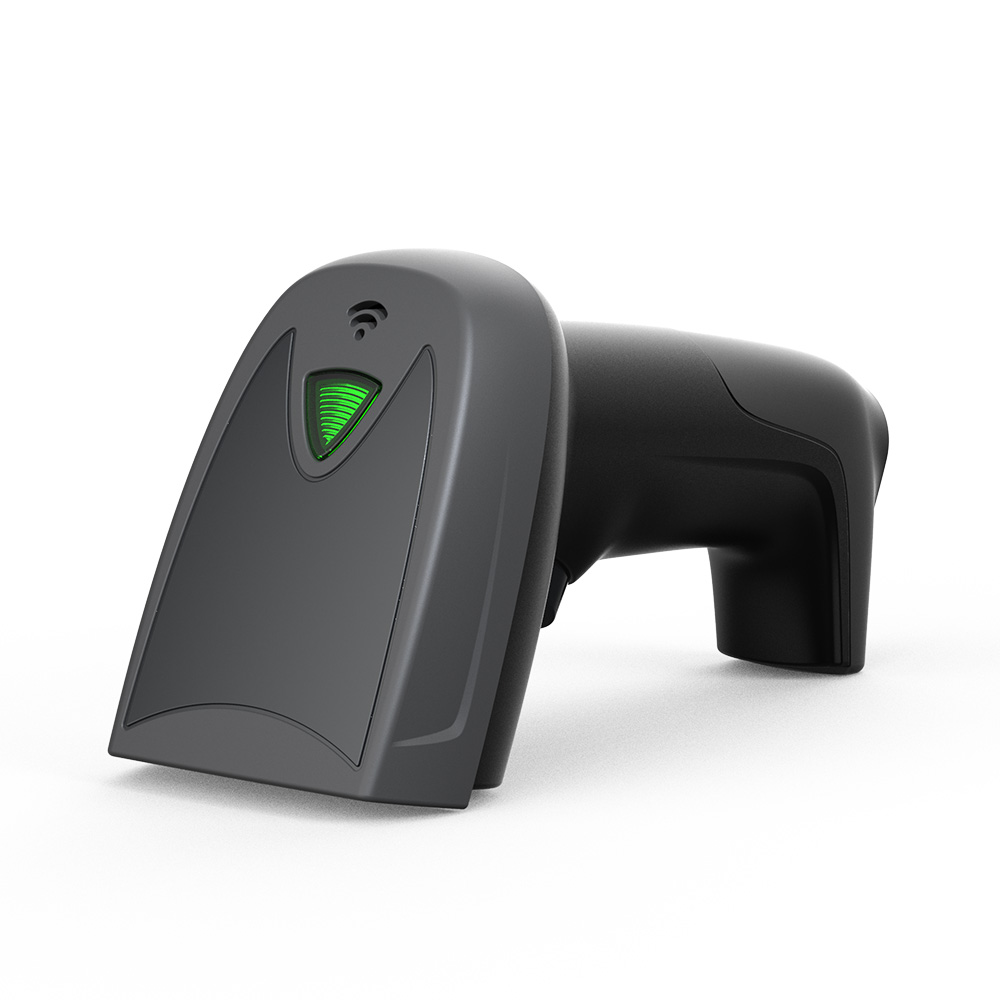

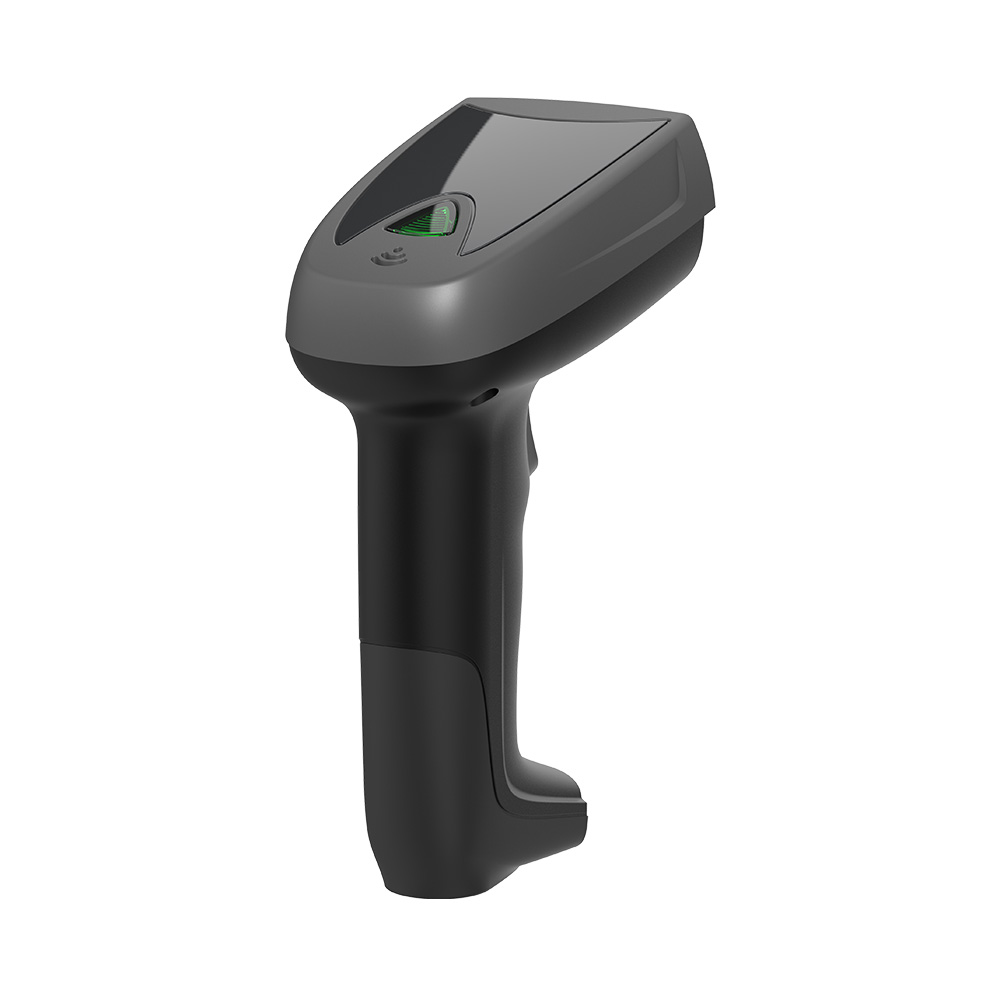

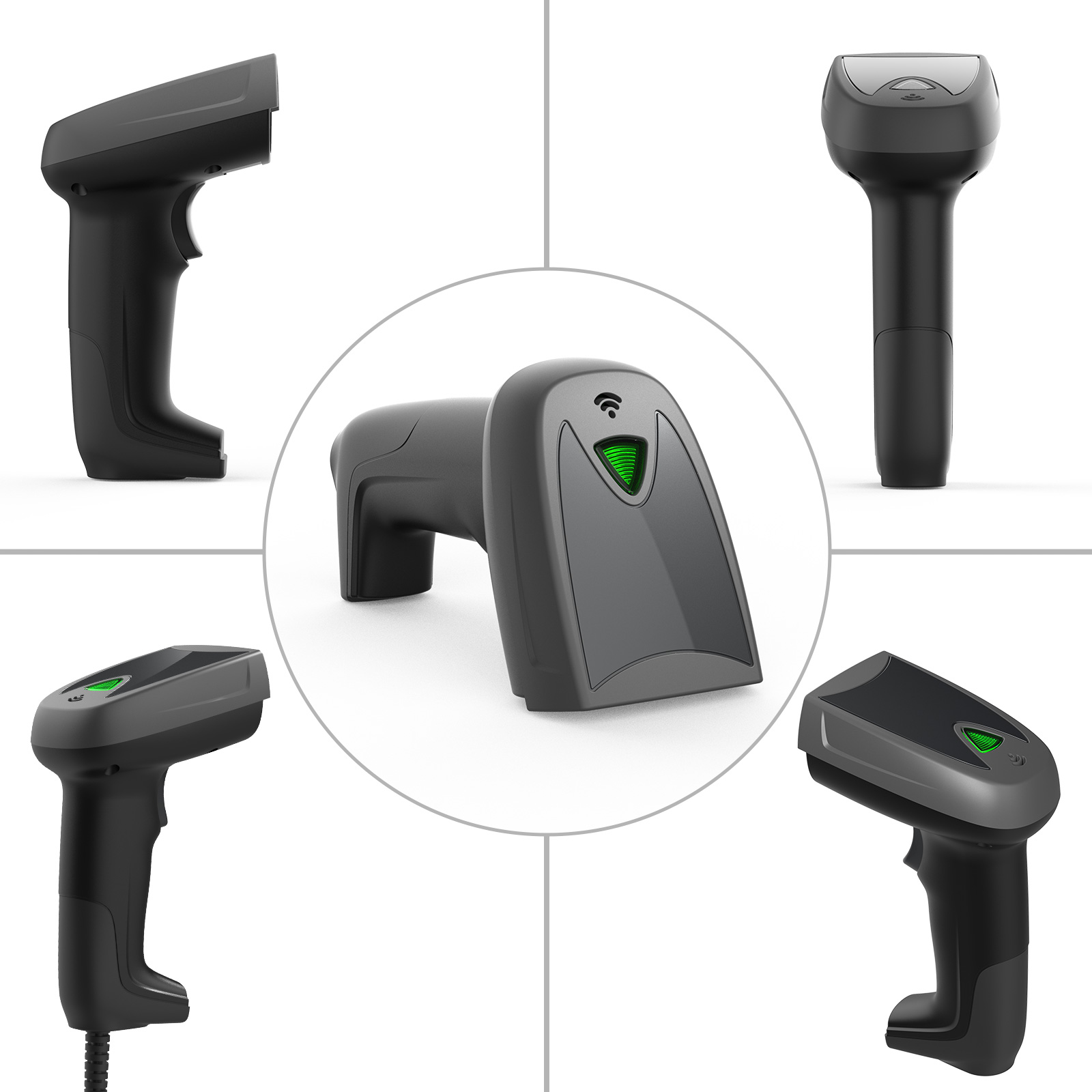

Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, it has excellent compatibility and can be used to benchmark projects such as New World and Shangmi. For exports, it can be used to benchmark low-end and mid-range products priced below 500 yuan, such as imported products from Horney. There is no problem, and the barcode for foreign wine bottles covers all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
PRODUCT DESCRIPTION
2D:6 QR CODE PDF417 Data Matrix QR Code HanXin AZTEC Maxicode
1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32
Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, it has excellent compatibility and can be used to benchmark projects such as New World and Shangmi. For exports, it can be used to benchmark low-end and mid-range products priced below 500 yuan, such as imported products from Horney. There is no problem, and the barcode for foreign wine bottles covers all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
GT-1800G Technical Parameter | |||||||
Model | GT-1800W | ||||||
Item | Wired 2D Barcode Scanner | ||||||
Physical Parameter | |||||||
Material | ABS+PC | ||||||
Power Supply | DC 5V ±5% | ||||||
Electric Current | 200mA(working);127mA(standby);270mA(maximum) 【average current】 | ||||||
Power Consumption | 1.00W(working);0.63W(standby);1.35W(maximum) 【Average power consumption】 | ||||||
Weight | 145.0g±5g(Without cable) | ||||||

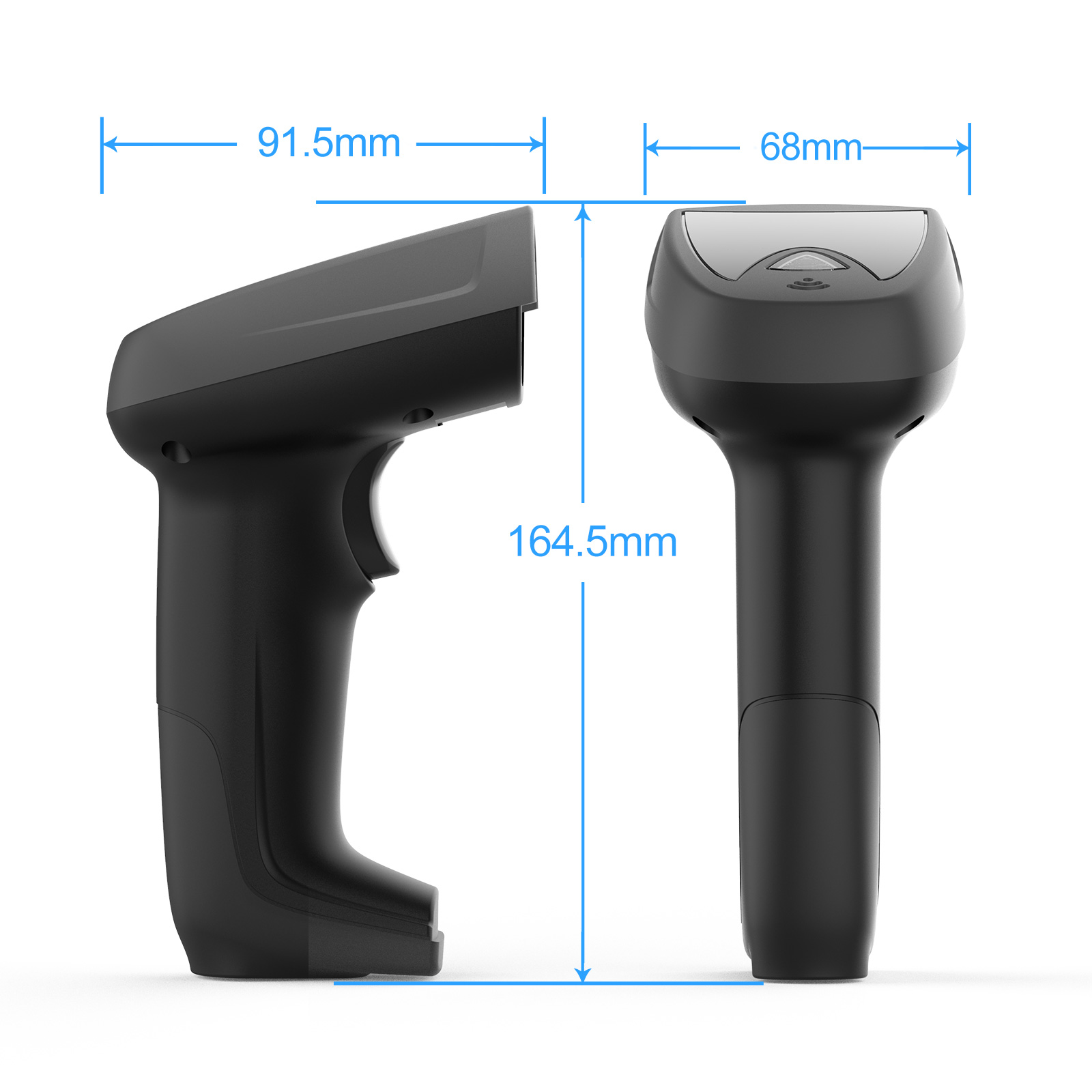

Size | L*W*H:164.5 * 91.5 * 68.0(unit:mm) | ||||||
Color | Black | ||||||
Performance Parameter | |||||||
Interface | USB | ||||||
System Supported | Linux,Android,Windows XP、7、8、10,MAC | ||||||
Language Supported | English;Belgian ;Finnish;French;German;Italian;Swedish;British;Danish;norwegian;Spanish ;Portuguese ;Turkish Q;Turkish F;Japanese ;Russian;Czech ;Thai;Ukrainian ; Brazilian ; Greek;Hungarian ;Dutch;Polish;Romanian; Slovak; (Virtual keyboard support) | ||||||

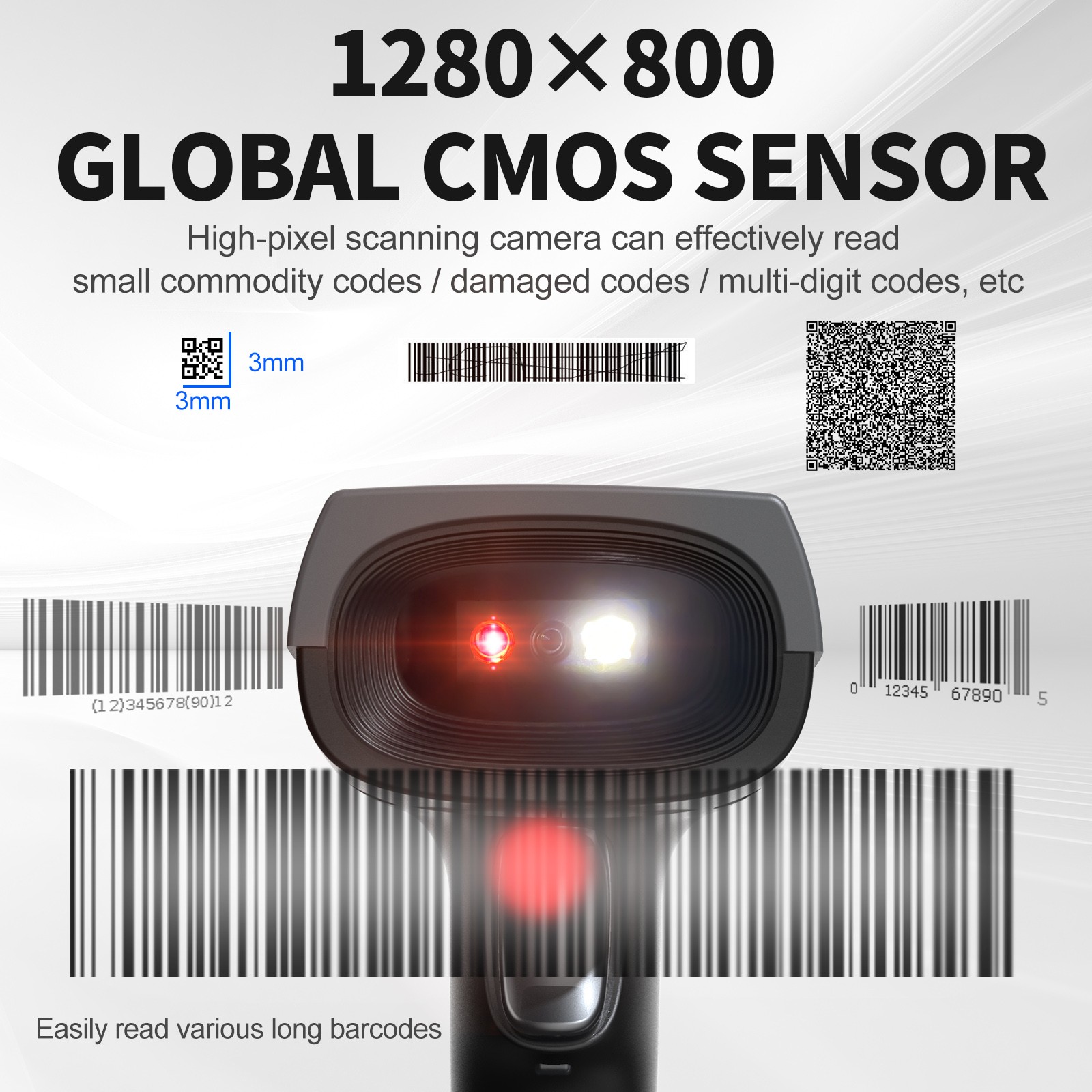

Sensor | 1280*800 Global CMOS sensor | ||||||
Light Source | Red led aiming + white led lighting | ||||||
Processor | 32-bit ARM MCU + DSP | ||||||
Motion Tolerance | Code128: 75cm/sec QR:80cm/sec | ||||||
Resolution | ≥3mil | ||||||
Bit Error Rate | 1/5000000 | ||||||
Reading mode | Image | ||||||

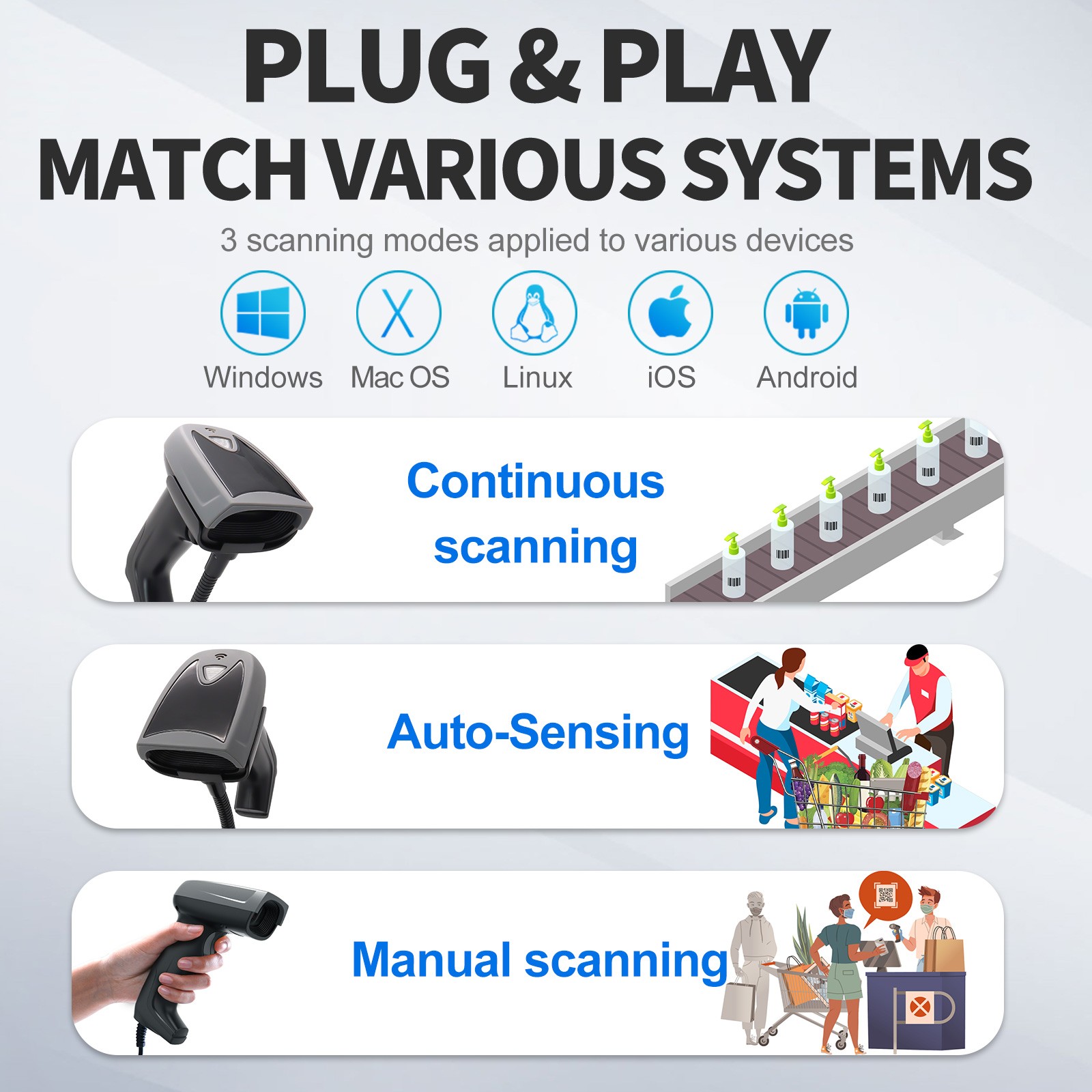

Trigger Mode | Manual ;Continuous scanning;Auto-sensing | ||||||

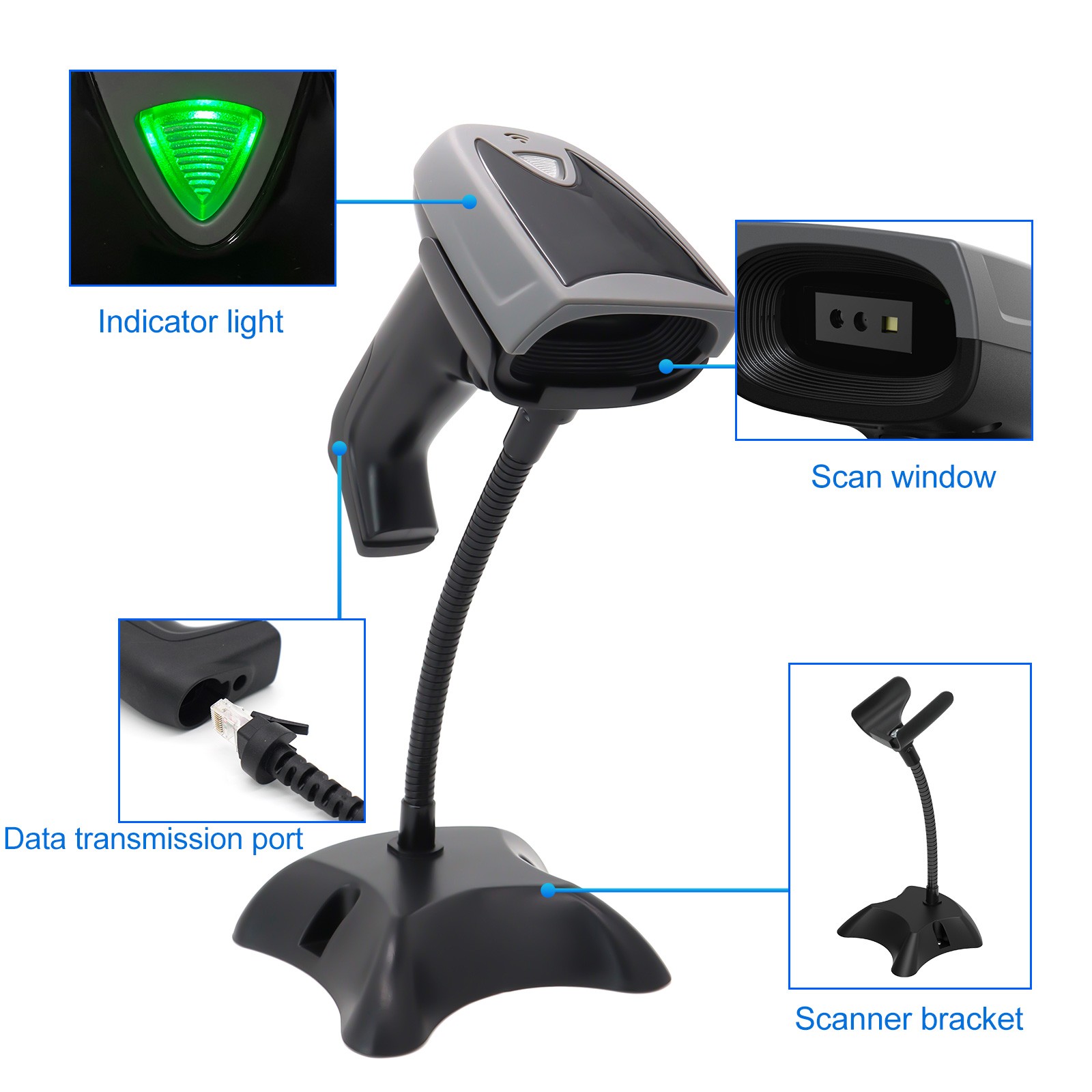

Prompt Mode | Buzzer, Indicator Light(LED) | ||||||
Print Contrast | ≥25% | ||||||
Scanning Angle | Pitch±55°,Yew±55°,Roll 360° | ||||||

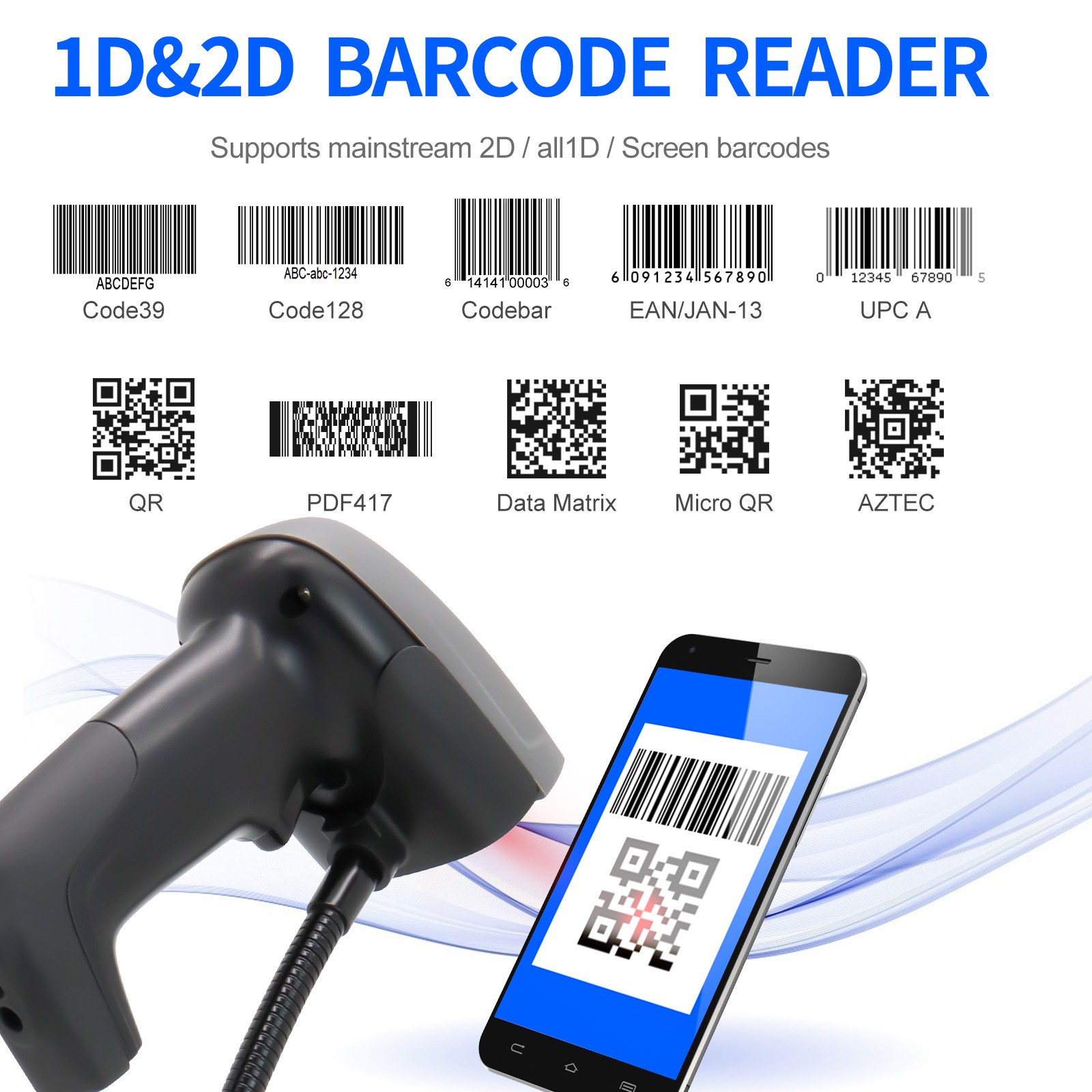

Decoding Capability | 1D | ◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN ◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5 ◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8 ◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar ◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93 ◎GS1 composite code | |||||
2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode | ||||||
Scanning depth | QR 14.17mil 8bytles:1cm - 20cm PDF417 7.5mil:1cm - 9cm EAN13 10mil: 3cm - 30cm | ||||||
Environment Parameter | |||||||
IP Grade | IP52 | ||||||
Operating Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
Storage Temp. | 0 to 60℃ / 32 to 122℉ | ||||||
Operating Humidity | 20% to 85%(No Condensation) | ||||||
Storage Humidity | 20% to 85%(No Condensation) | ||||||
ESD Protection | 15KV air discharge | ||||||

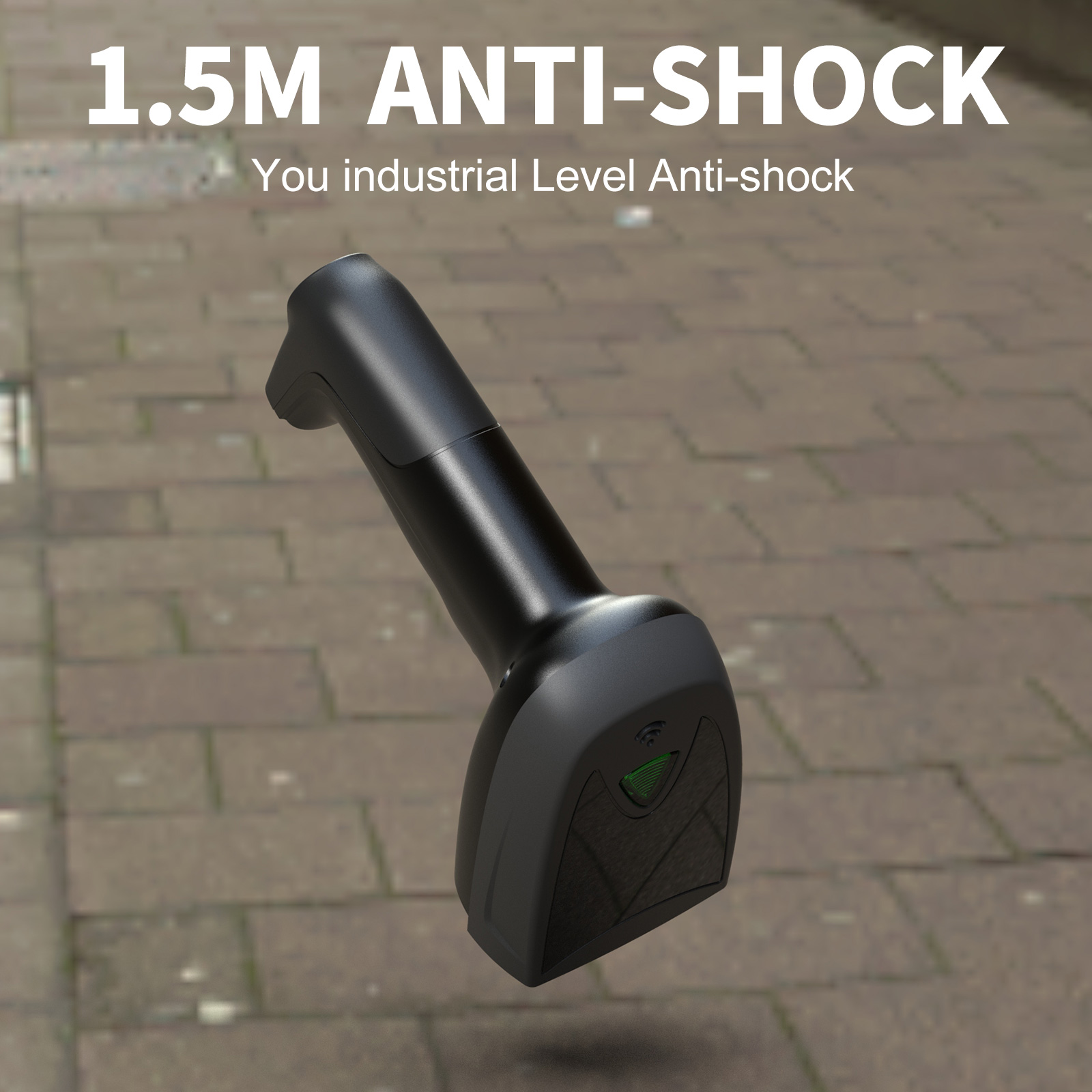

Shock Resistance | 1.5m free fall on concrete surface | ||||||
Environmental light | 0→100000Lux | ||||||
Note: This parameter is subject to change without prior notice. |
