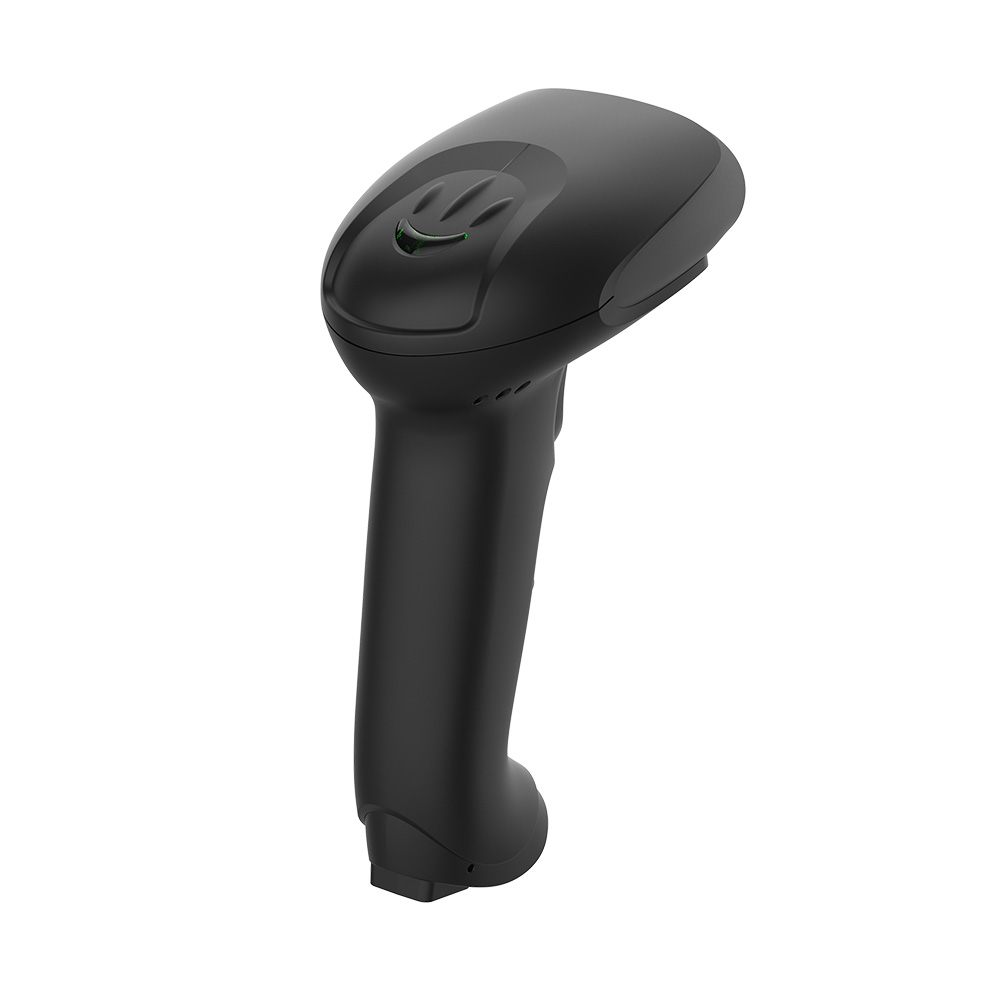

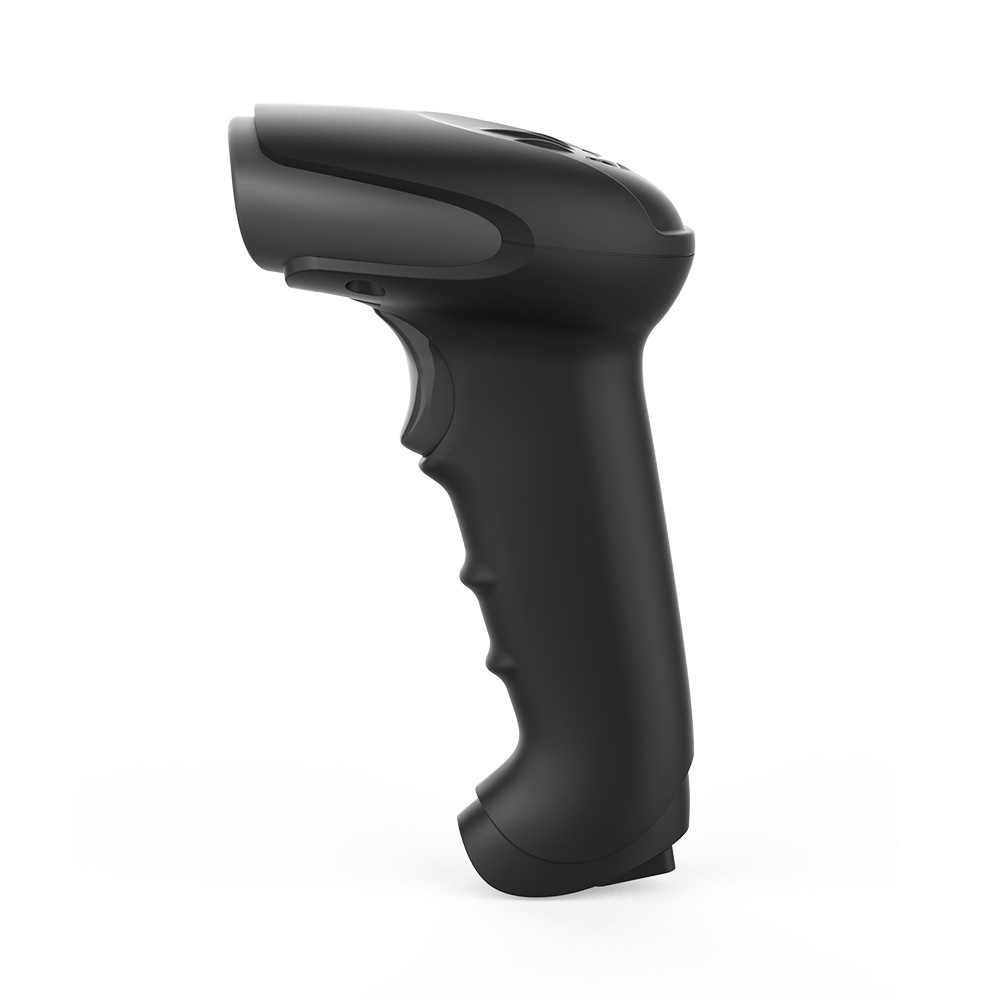

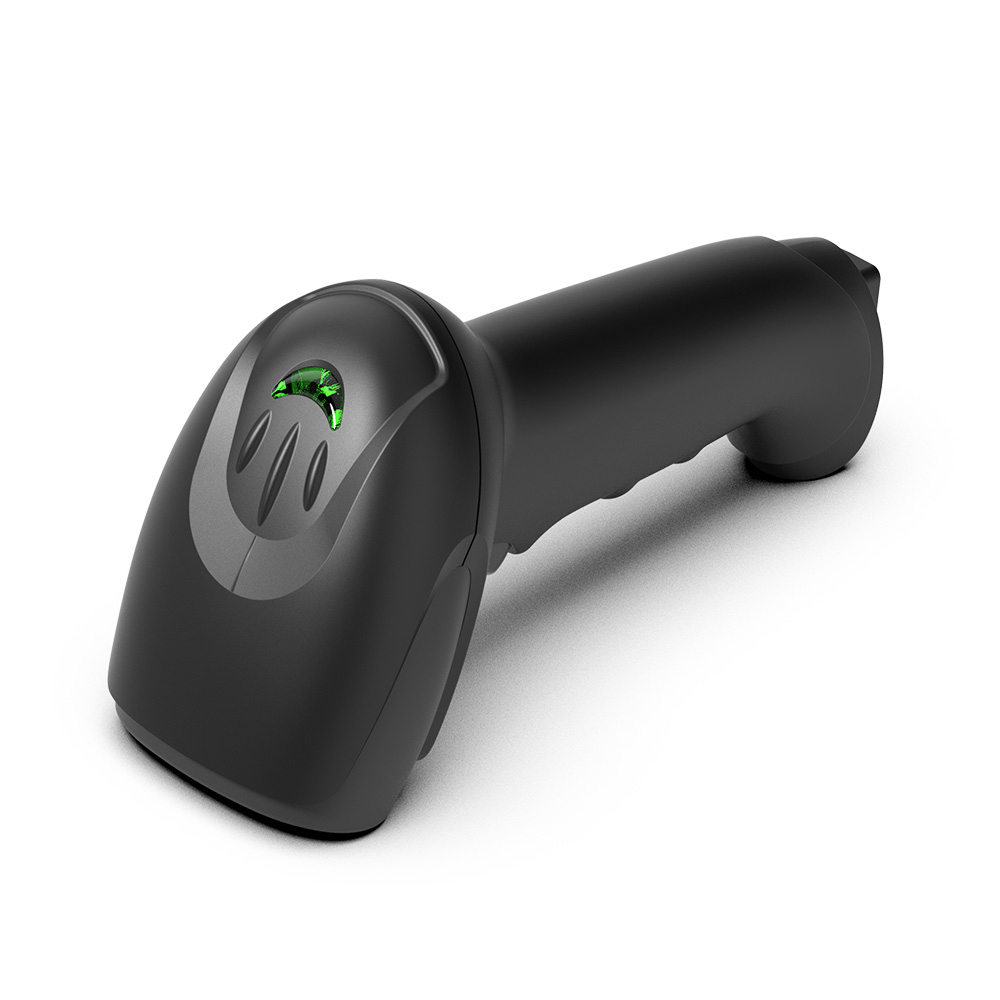

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> Automatic Reading QR Barcode Scanner Handheld
2D Support 8 QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ,Han xinCode 1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32
Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, the compatibility is particularly good, benchmarking projects such as New World and Shangmi, as well as foreign wine bottle barcodes, covering all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
PRODUCT DESCRIPTION
2D Support 8 QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ,Han xinCode 1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32
Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, the compatibility is particularly good, benchmarking projects such as New World and Shangmi, as well as foreign wine bottle barcodes, covering all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
| Parameters Sheet | |||||||
| Model No. | X-760H | ||||||
| Product Name | 2D Wired Barcode Scanner | ||||||
| Physical Parameters | |||||||
| Material | ABS+PC+TPE | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 0.85W（Working）；0.55W（Standby）；1.05W（Maximum） | ||||||
| Current | 168mA（Working）；109mA（Standby）；200mA（Maximum） | ||||||
| Weight | 108g±5g（including cable） | ||||||

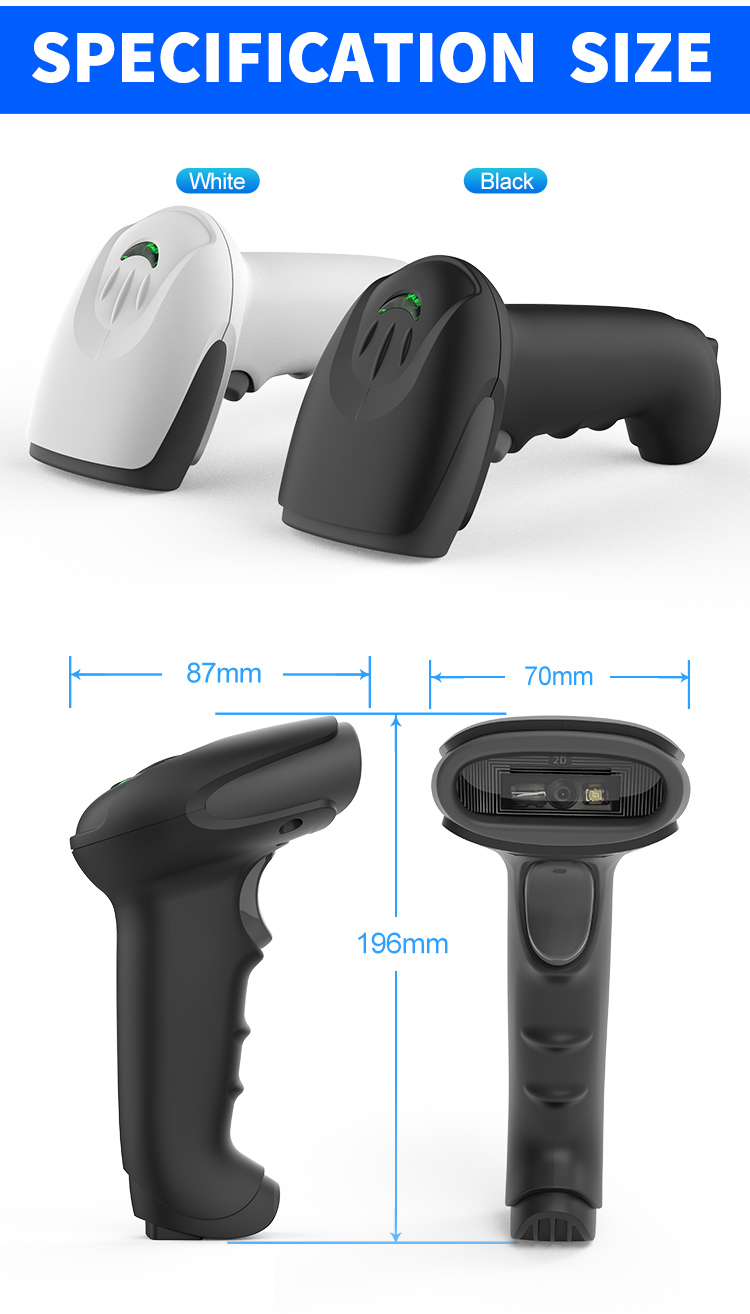

| Size | L180.1 * W88.7 * H66.3（Unit: mm） | ||||||
| Color | Black or Grey White | ||||||
| Button Lifetime | ＞200000 | ||||||
| Performance Parameters | |||||||
| USB | USB；（RS232 to be optional） | ||||||

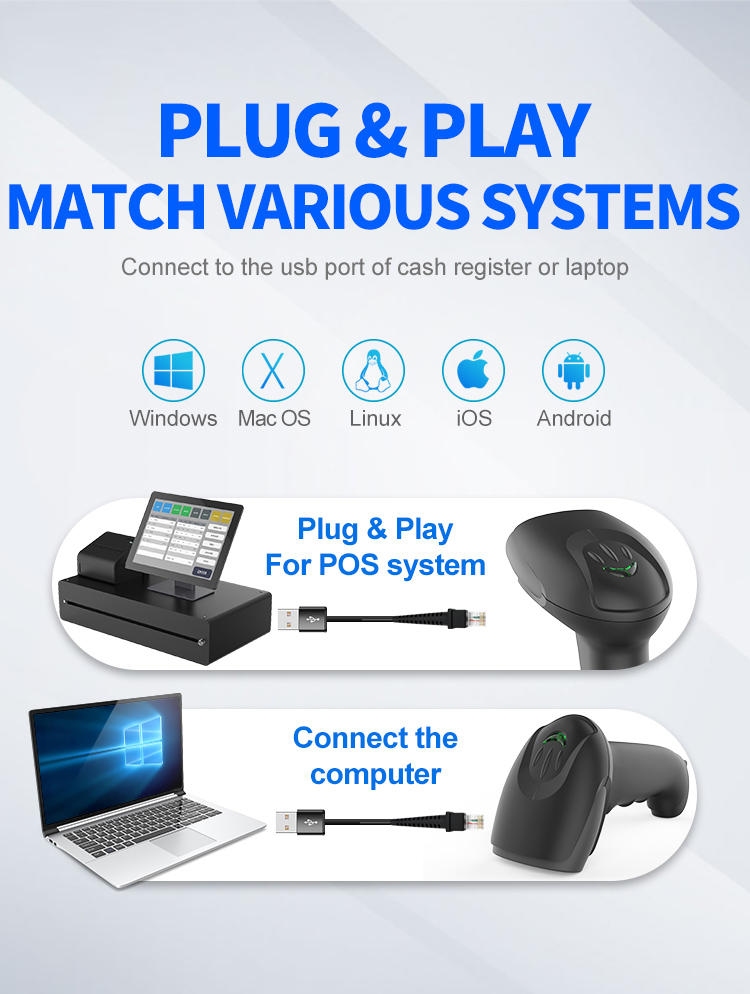

| OS | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Keyboard Language | American；French；German；Hungary；Italian；Spanish； 【Virtual Keyboard is supported】 | ||||||
| Light Source | Red LED(Aiming)+White LED(lighting) | ||||||
| Resolution | ≥4mil | ||||||
| Error Rate | 1/500M | ||||||
| Motion tolerance | code 128:20cm/sec QR:25cm/sec | ||||||
| Sensor | Planar CMOS sensor | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Manual Mode,Continuous Scanning Mode | ||||||
| Reading Range | 10mm-600mm | ||||||

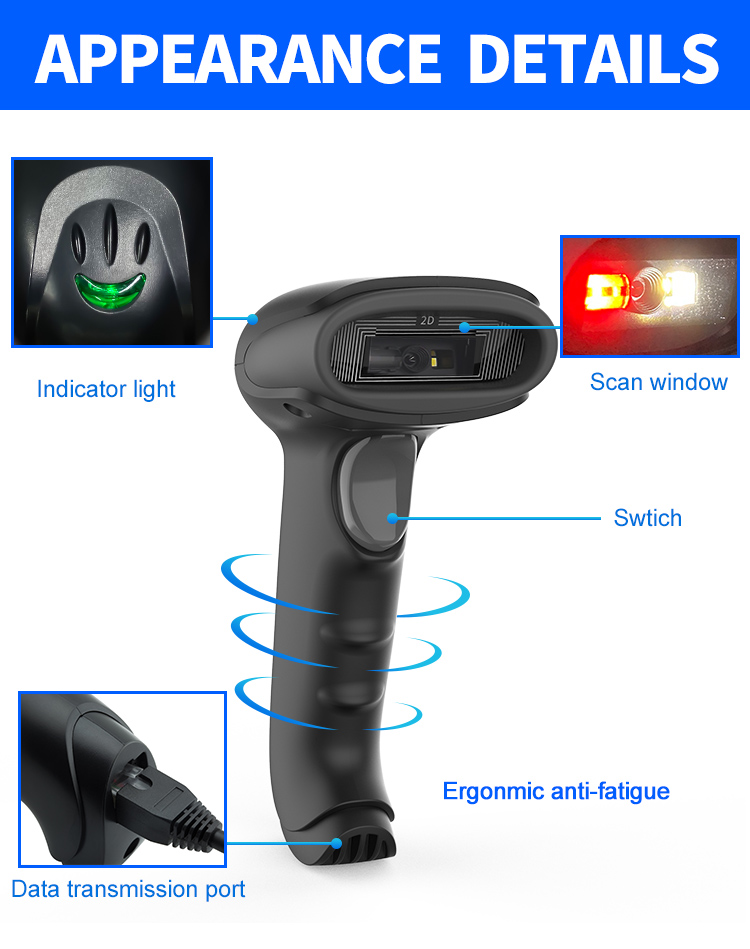

| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | 30% | ||||||
| Reading Angle | Roll360°，Pitch45°，Yew45° | ||||||
| Decoding Capacility | 1D | ● Code25-Interleaved ● Code25-Standard ● Code25-Matri ● RSS-14 ● Code39-Regular ● Code39-FullASCII ● Code93-Regular ● Code93-FullASCII ● Code128 ● Code11 ● UPCE0/E1 ● EAN/GSL/UCC-128Auto ● Codabar ● MSI ● EAN/JAN-13 ● UPC-A ● JAN/EAN-8 | |||||
| 2D | ● Data Matrix ● QR ● PDF417 ● Micro QR ●HanXin ● Micro PDF 417 ● Maxi Code ●Aztec | ||||||
| Scanning Depth | QR 9.17 mil（7 byte）：6cm - 10cm Data Matrix 9.17mil（7 byte)：7cm - 10cm code93 5.83mil（14 byte）：7cm - 10cm | ||||||
| Environmental Parameters | |||||||
| IP | IP42 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

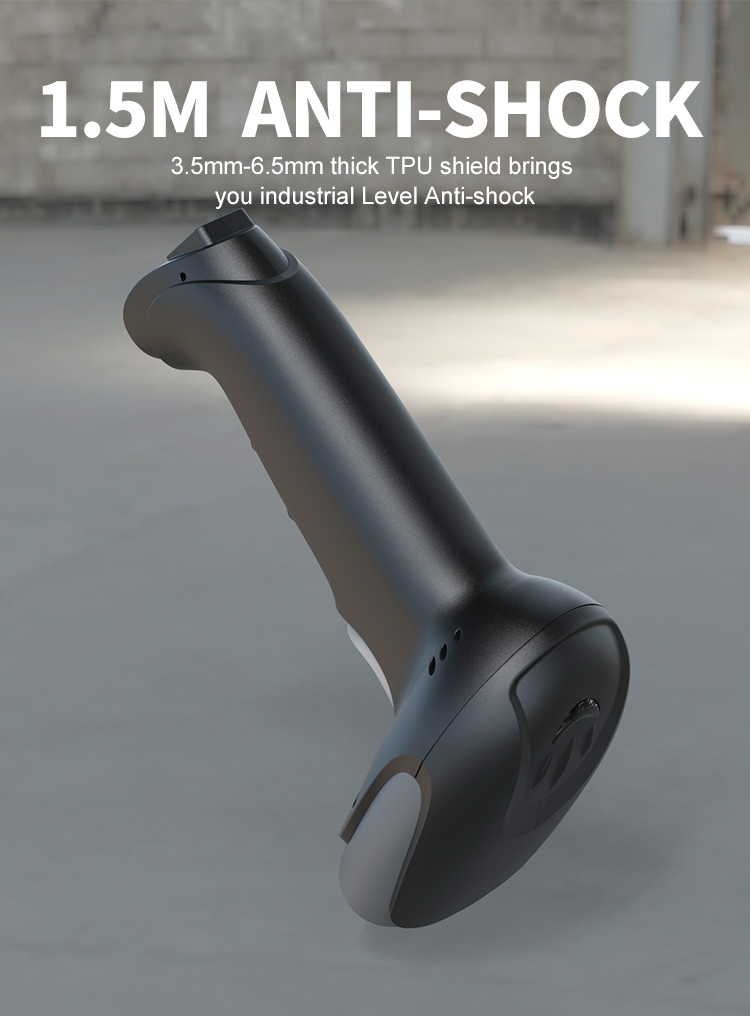

| Shock Resistance | 1.2m free fall on concrete | ||||||
