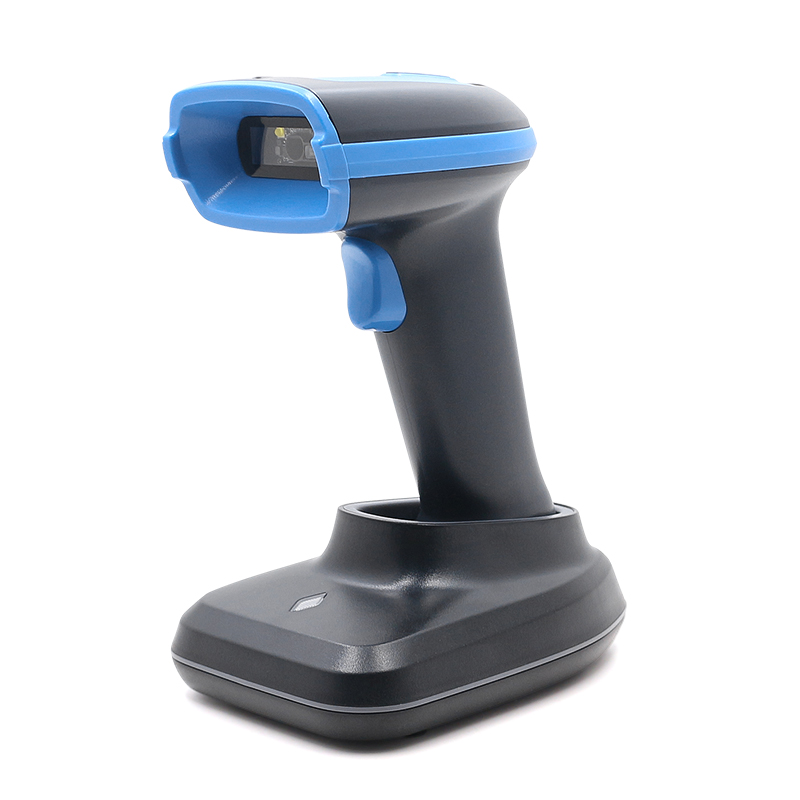

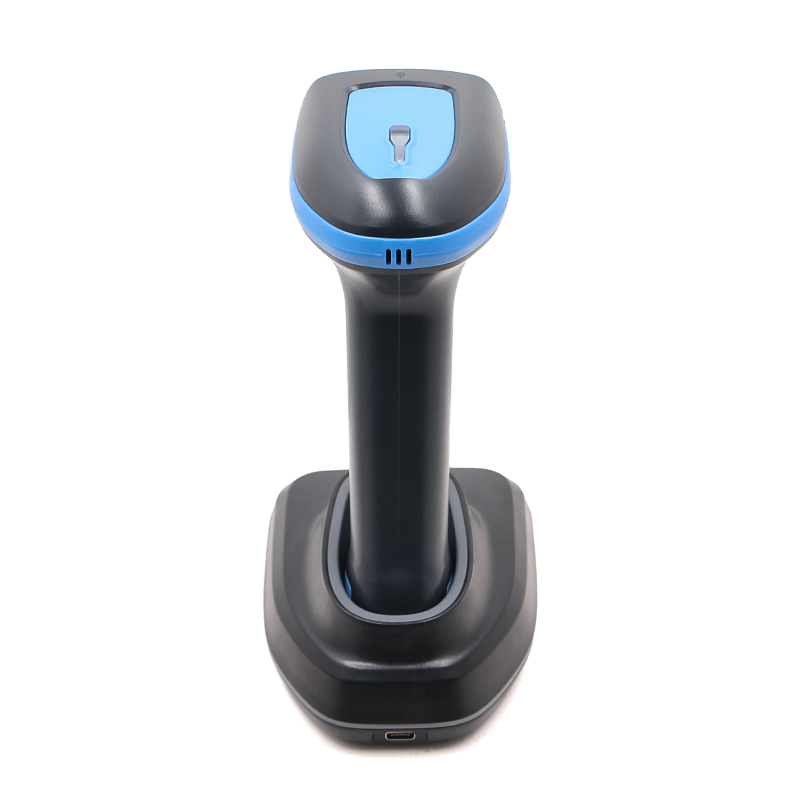

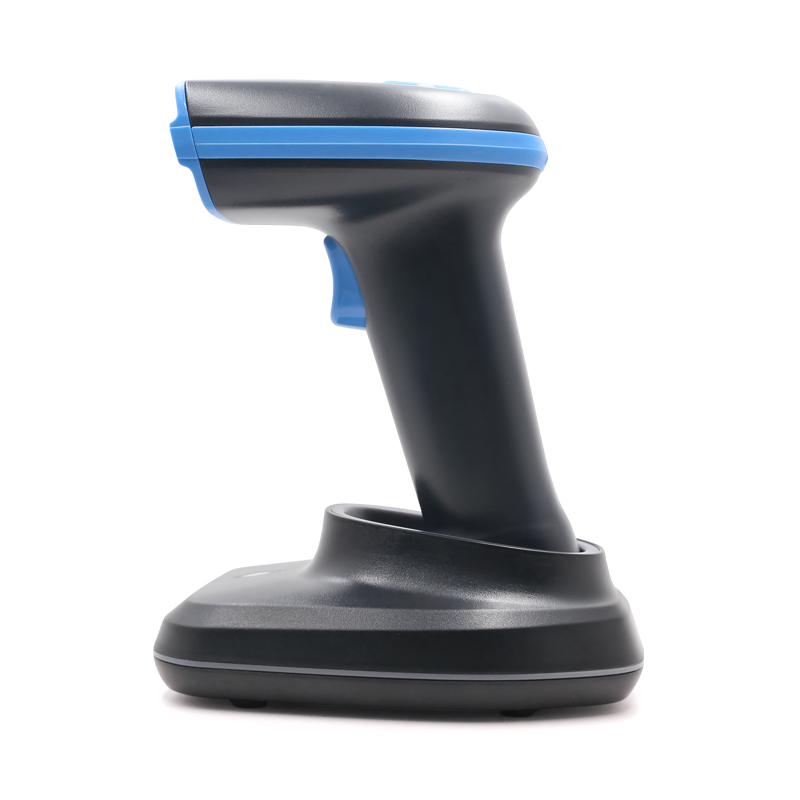

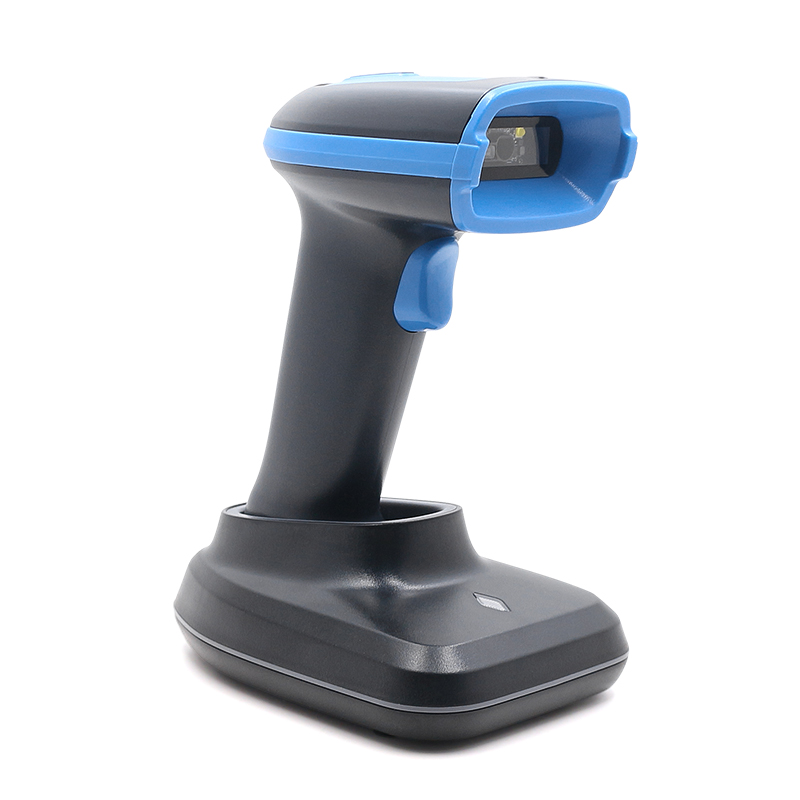

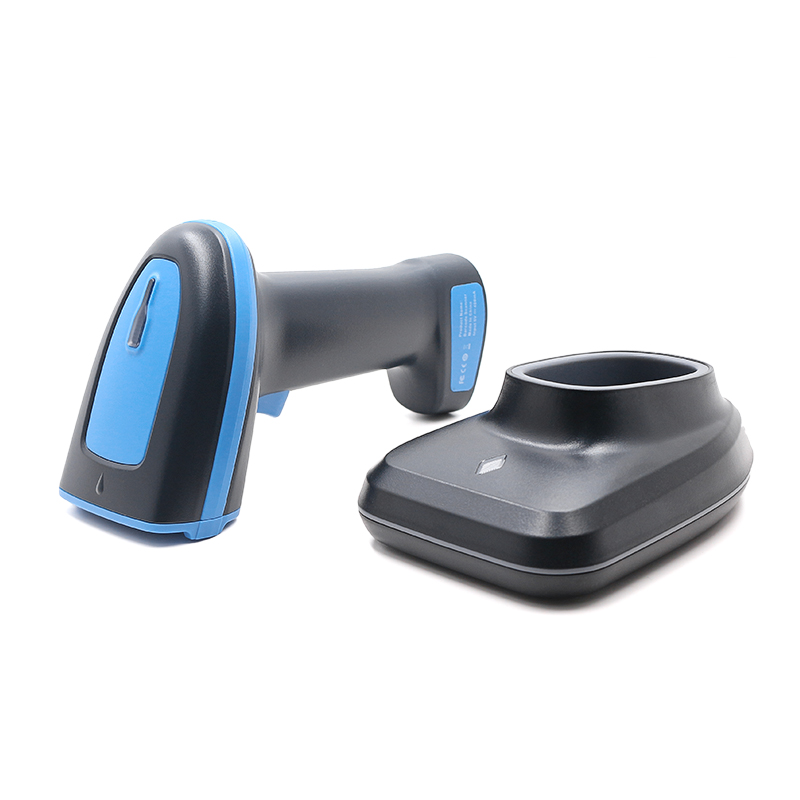

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> BWHS23 DPM 2D wireless 2D barcode scanner 2.4g bluetooth
Performance | Image Sensor | 1280*1024 CMOS | |
Illumination LED | White LED | ||
Aiming | Red LED | ||
Decode Capacity | 2D | QRCode、DataMatrix | |
1D | Code 39、Code 128、CodeBar、ITF25、Code 93、ITF14、EAN8、EAN13、UPCA、UPCE | ||
Resolution* | ≥3mil | ||
Typical Decode Range* | Code 39（3 mil） | 45mm ~ 80 mm（Barcode size：10mm*8mm） | |
Code 39（5 mil） | 30mm~150mm（Barcode size：22mm*8mm） | ||
DataMatrix（5mil） | 45mm~75mm（Barcode size：2mm*2mm） | ||
Minimum Print Contrast* | ≥20% | ||
Scan Angle** | Skew±60°，Pitch±60°，Roll 360° | ||
FOV | 40°（H） 34°（V） | ||
Wireless | Transmission Mode | Real time mode/storage mode | |
Wireless Technology | Bluetooth5.0 / 2.4G wireless | ||
Wireless Range | ≥15 meters(Bluetooth） ≥60 meters（2.4G） | ||
Storage Capacity | ≥15000 Barcodes（20 characters Code128 ） | ||
Battery Capacity | 2000 mAh | ||
Charging Time | ≤4 Hours | ||
Expected Operating Time | ≥6 Hours（6 sec/scan）（2.4G Mode） | ||
Electronic | Interface | USB | |
Dimension(mm) | 68(W)×96.5 (D)×175(H) | ||
Net Weight | 201g | ||
Indicator | Buzzer, LED Indication, Vibrator | ||
Charging Voltage | 5 VDC±5% | ||
Environmental | Operating Temperature | -10℃~+60℃ | |
Storage Temperature | -20℃~+70℃ | ||
Operating Humidity | 5%~95% (Non-condensing) | ||
Ambient Light | 0~100,000LUX | ||
Accessories | Cable | USB | USB transmission, charging |
Dongle | Normal Dongle | 2.4G/Bluetooth | |
Charging Cradle | 2.4G/Bluetooth |
PRODUCT DESCRIPTION
Performance | Image Sensor | 1280*1024 CMOS | |
Illumination LED | White LED | ||
Aiming | Red LED | ||
Decode Capacity | 2D | QRCode、DataMatrix | |
1D | Code 39、Code 128、CodeBar、ITF25、Code 93、ITF14、EAN8、EAN13、UPCA、UPCE | ||
Resolution* | ≥3mil | ||
Typical Decode Range* | Code 39（3 mil） | 45mm ~ 80 mm（Barcode size：10mm*8mm） | |
Code 39（5 mil） | 30mm~150mm（Barcode size：22mm*8mm） | ||
DataMatrix（5mil） | 45mm~75mm（Barcode size：2mm*2mm） | ||
Minimum Print Contrast* | ≥20% | ||
Scan Angle** | Skew±60°，Pitch±60°，Roll 360° | ||
FOV | 40°（H） 34°（V） | ||
Wireless | Transmission Mode | Real time mode/storage mode | |
Wireless Technology | Bluetooth5.0 / 2.4G wireless | ||
Wireless Range | ≥15 meters(Bluetooth） ≥60 meters（2.4G） | ||
Storage Capacity | ≥15000 Barcodes（20 characters Code128 ） | ||
Battery Capacity | 2000 mAh | ||
Charging Time | ≤4 Hours | ||
Expected Operating Time | ≥6 Hours（6 sec/scan）（2.4G Mode） | ||
Electronic | Interface | USB | |
Dimension(mm) | 68(W)×96.5 (D)×175(H) | ||
Net Weight | 201g | ||
Indicator | Buzzer, LED Indication, Vibrator | ||
Charging Voltage | 5 VDC±5% | ||
Environmental | Operating Temperature | -10℃~+60℃ | |
Storage Temperature | -20℃~+70℃ | ||
Operating Humidity | 5%~95% (Non-condensing) | ||
Ambient Light | 0~100,000LUX | ||
Accessories | Cable | USB | USB transmission, charging |
Dongle | Normal Dongle | 2.4G/Bluetooth | |
Charging Cradle | 2.4G/Bluetooth |
