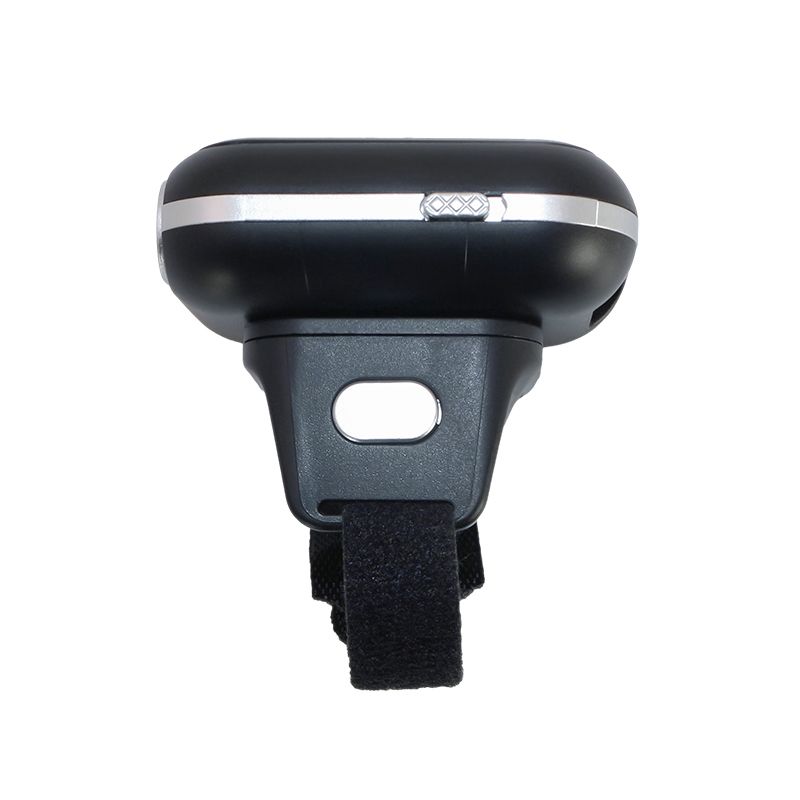

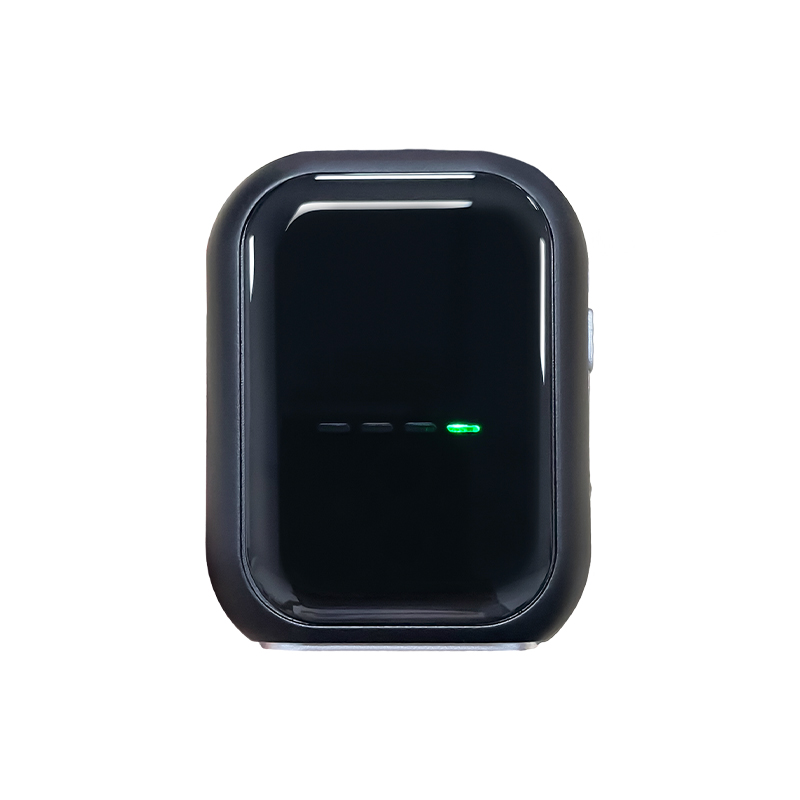

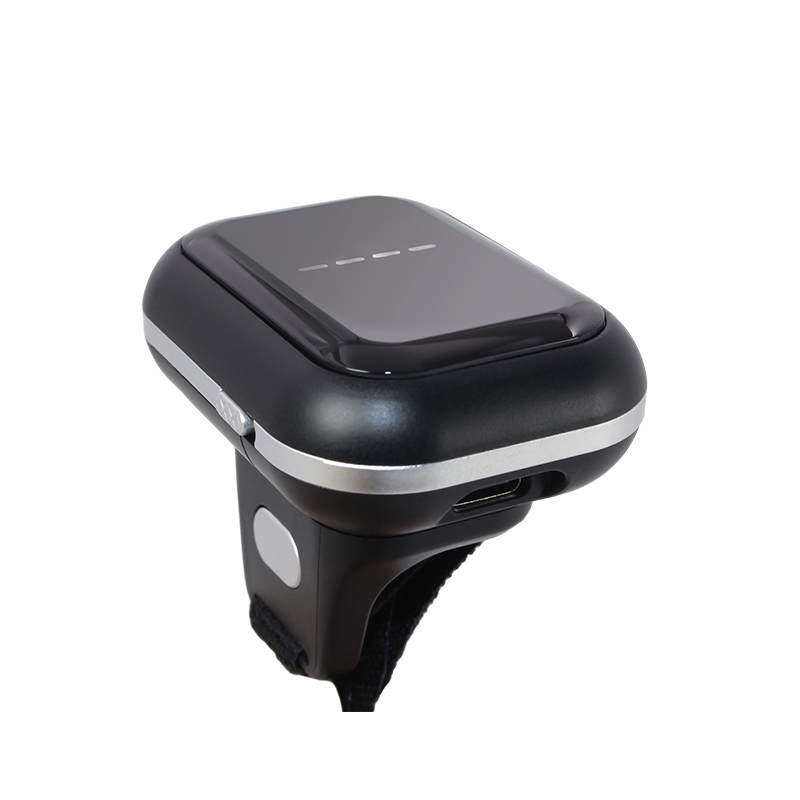

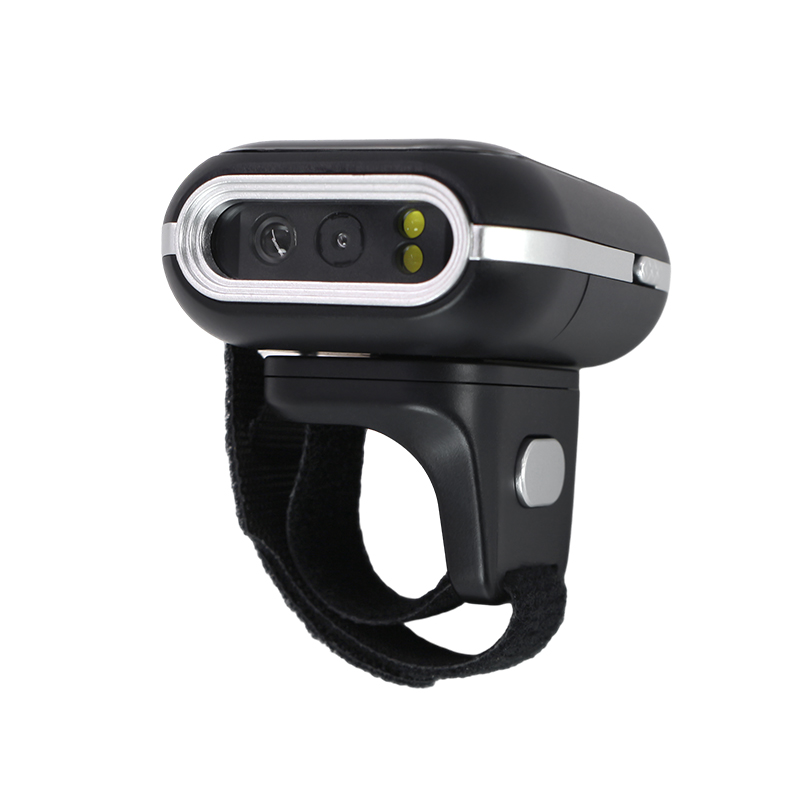

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> F20PRO WIRELESS BARCODE SCANNER 2.4G BLUETOOTH
Technical Specification
Performance | ||||
Image Sensor | 1280*800 CMOS | |||
Decode Capacity | 1D：EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 39FULLASCII, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, ISBT-128, GS1-128, GS1 DataBar（RSS14）, GS1 DataBar Limited, GS1 DataBar Expanded, MSI, Febraban | |||
2D：PDF417, MicroQR, Data Matrix, QR-code, Aztec | ||||
Typical Scan Range | Tested barcodes | Min | Max | |
5mil code39 | 9cm | 24cm | ||
UPC-13mil | 4cm | 58cm | ||
20 mil code39 | 8cm | 65cm | ||
20 mil QR | 1cm | 40cm | ||
OS | Linux，Android,Windows XP, 7, 8, 10,MacOS | |||
Scan Mode | Manual Scan | |||
Country Keyboard Layouts | American English (Chinese) (default), German, French, Spanish, Italian, Japanese, Belgian French, Portuguese, British English, Brazilian Portuguese, Russian, Czech, Italian 142, Turkish Q, Turkish F, Swedish/Finnish, Mexican Spanish. Danish, Norwegian (written Norwegian), Croatian/Serbian, Swiss German, Swiss French, Dutch, Hungarian, Polish, Canadian French, Argentinian (Latin American), Slovakian | |||
Resolution | Code 39 5mil | |||
Readable Barcode Material Type | 1D and 2D barcodes on paper, label, film and digital screens. | |||
Motion Tolerance | 2.2 meters/sec | |||
Minimum Print Contrast | 25% | |||
Second Development | Second development | |||
Barcode Data Edit | Prefix/Suffix | |||
FOV | 55.4°(D) 42°(H) 31.2°(V) | |||
Scan Angle | Roll±360°，Skew±60°，Pitch±70° | |||
Environmental | ||||
Drop | Withstand 1.5 meter drop 5 times | |||
Sealing | IP54 Level | |||
Operating Temperature | -20-55℃ | |||
Storage Temperature | -20-60℃ | |||
Operating Humidity | 5-95% Non-condensing | |||
Storage Humidity | 5-95% Non-condensing | |||
Ambient Light | 0-70000LUX | |||
Human-machine interaction | ||||
LED Indicator | Red and blue dual-color indicator light, red decode prompt, blue connection prompt | |||
Beeper | Startup Tip, Connection Tip, Good read Tip | |||
Trigger | Startup , Scan trigger | |||
Firmware Upgrade | Support | |||
Low Power | Beep 5 times and turn off | |||
Charging Status | Charging: red led on; battery full: red led off. | |||
Physical | ||||
Battery Capacity | 500MAH | |||
Product Dimension（Length * Width * Height mm） | 54.8*42.4*44.26mm | |||
Package Size（Length * Width * Height mm） | 135*115*50mm | |||
Net weight | 44g | |||
Gross weight | 180g | |||
Wireless Data | Wireless Technology | Bluetooth, 2.4G | ||
Wireless Distance | Bluetooth 15m，2.4G 60m | |||
Wireless Radio Power | 20dBm | |||
Wireless Receive Power | 20dBm | |||
Cable Length | 150CM(±3CM) | |||
Scan Times | Nearly 4,000 scans per charge (1,000 scans per hour) | |||
Expected Operating Hours | 2.66 hours( one scan/second) | |||
Expected Charging Time | 1.33 hour | |||
Storage Number of barcode | 15000 barcodes | |||
Data Transmission Method | USB, Bluetooth, Wireless 2.4G | |||
