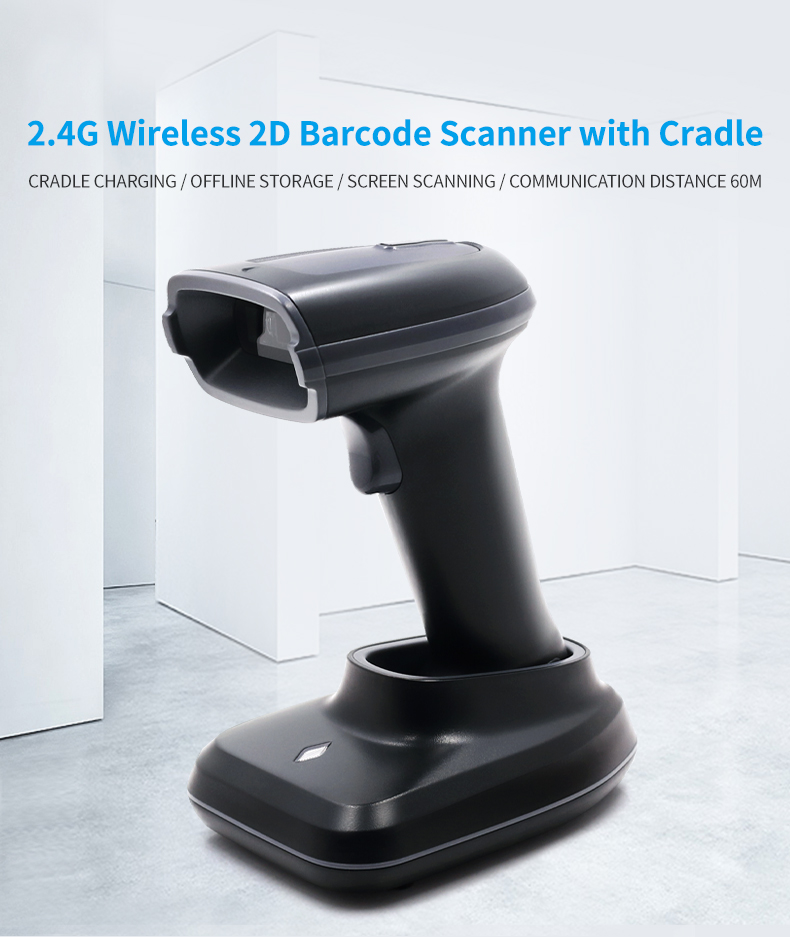

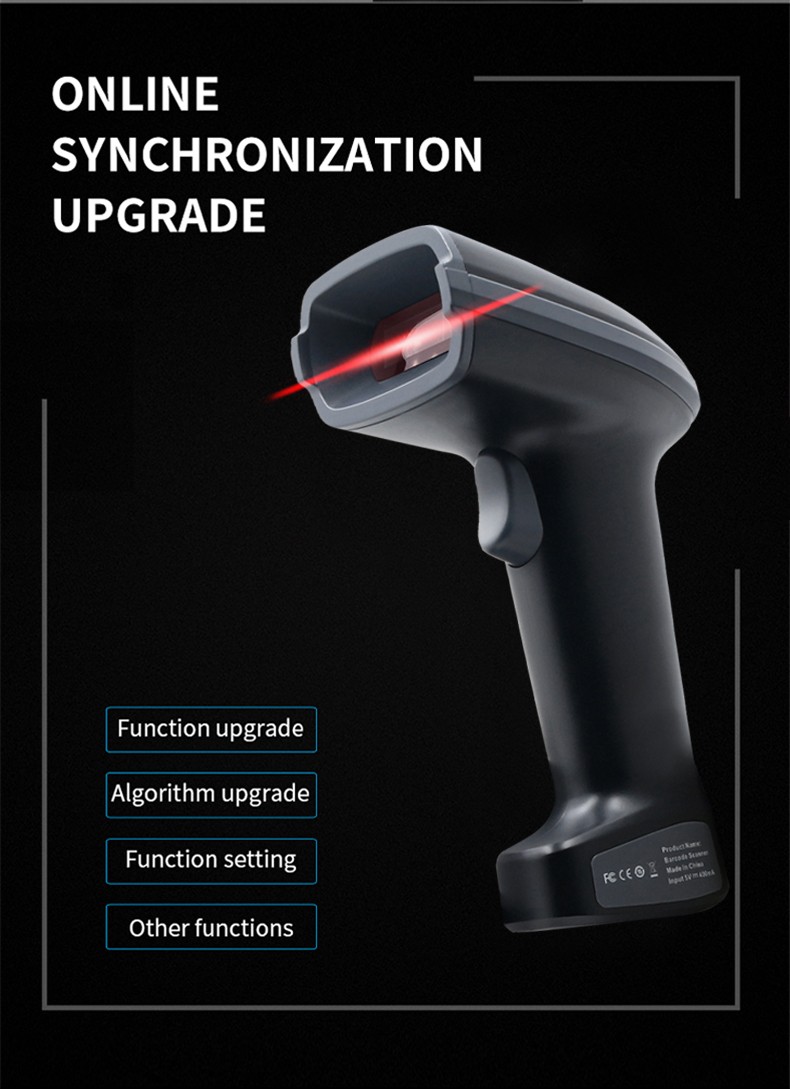

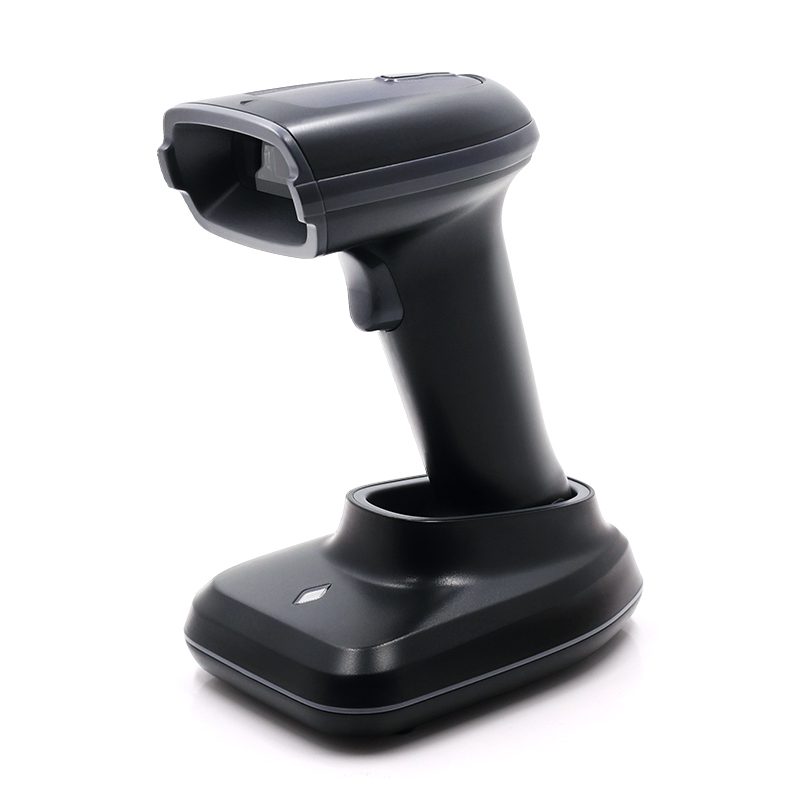

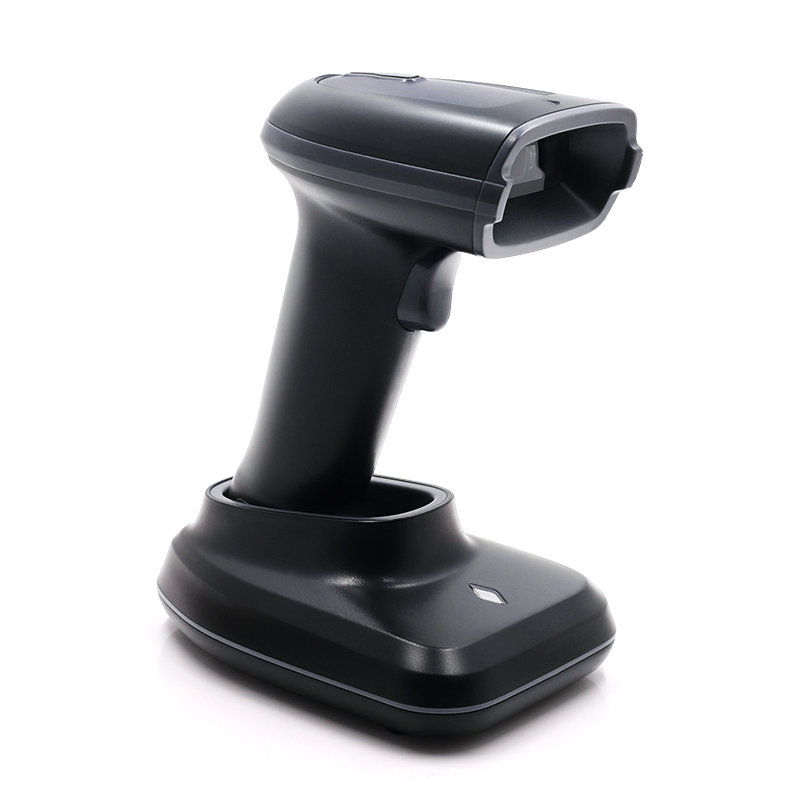

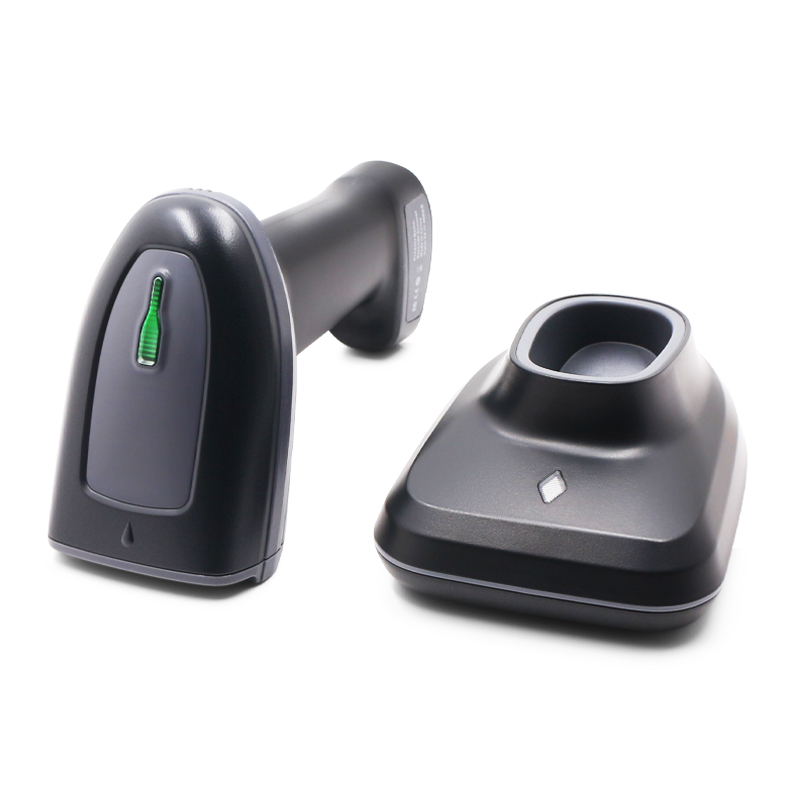

HS23 Wireless 1D 2D barcode scanner with bluetooth 2.4G

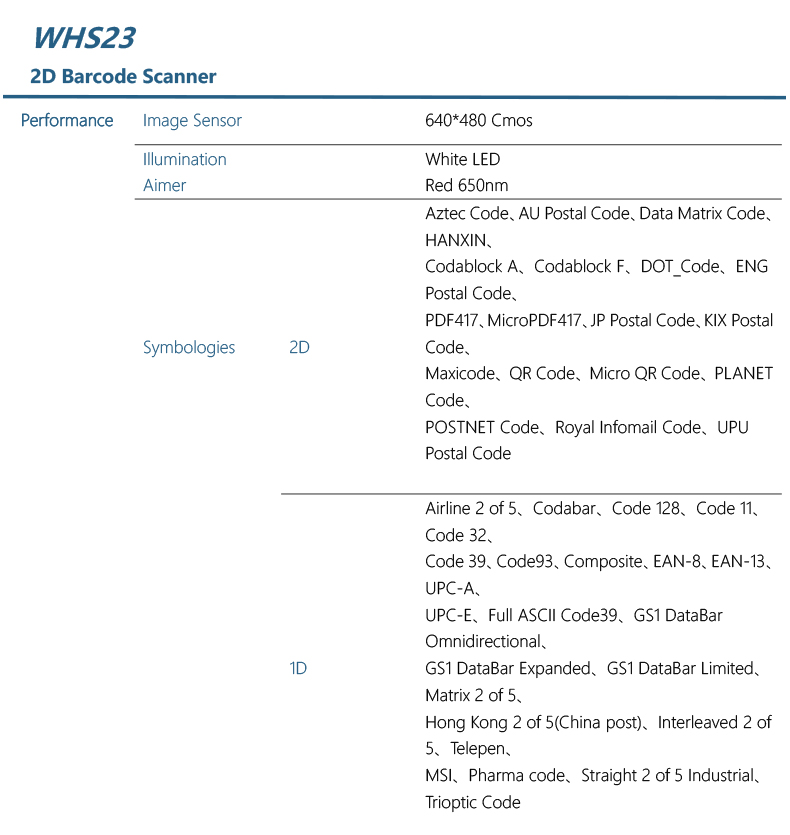

Performance

Image Sensor

640*480 Cmos

Illumination

White LED

Aimer

Red 650nm

Symbologies

2D

Aztec Code、AU Postal Code、Data Matrix Code、HANXIN、

Codablock A、Codablock F、DOT_Code、ENG Postal Code、

PDF417、MicroPDF417、JP Postal Code、KIX Postal Code、

Maxicode、QR Code、Micro QR Code、PLANET Code、

POSTNET Code、Royal Infomail Code、UPU Postal Code

1D

Airline 2 of 5、Codabar、Code 128、Code 11、Code 32、

Code 39、Code93、Composite、EAN-8、EAN-13、UPC-A、

UPC-E、Full ASCII Code39、GS1 DataBar Omnidirectional、

GS1 DataBar Expanded、GS1 DataBar Limited、Matrix 2 of 5、

Hong Kong 2 of 5(China post)、Interleaved 2 of 5、Telepen、

MSI、Pharma code、Straight 2 of 5 Industrial、Trioptic Code

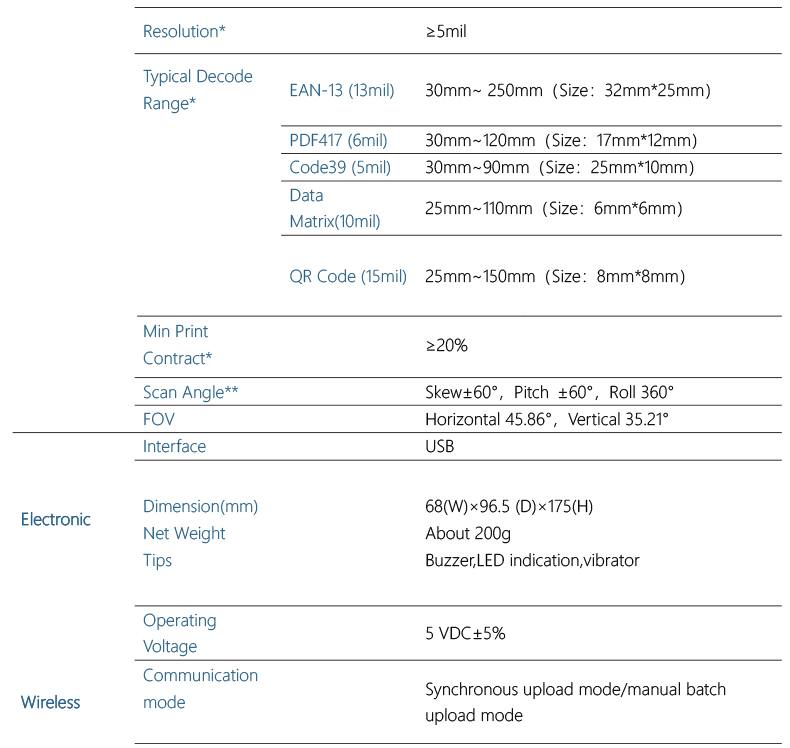

Resolution*

≥5mil

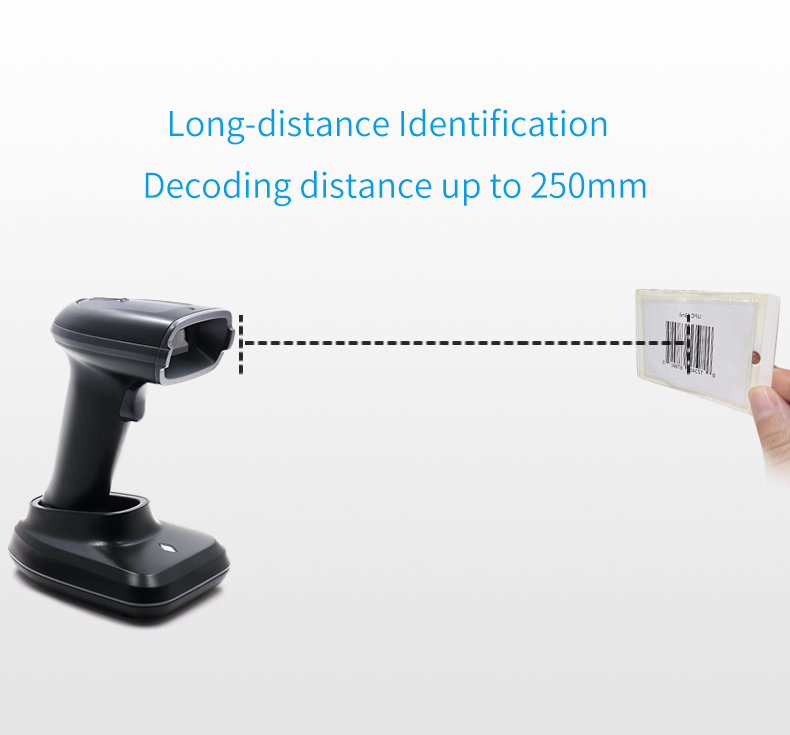

Typical Decode Range*

EAN-13 (13mil)

30mm~ 250mm（Size：32mm*25mm）

PDF417 (6mil)

30mm~120mm（Size：17mm*12mm）

Code39 (5mil)

30mm~90mm（Size：25mm*10mm）

Data Matrix(10mil)

25mm~110mm（Size：6mm*6mm）

QR Code (15mil)

25mm~150mm（Size：8mm*8mm）

Min Print Contract*

≥20%

Scan Angle**

Skew±60°，Pitch ±60°，Roll 360°

FOV

Horizontal 45.86°，Vertical 35.21°

Electronic

Interface

USB

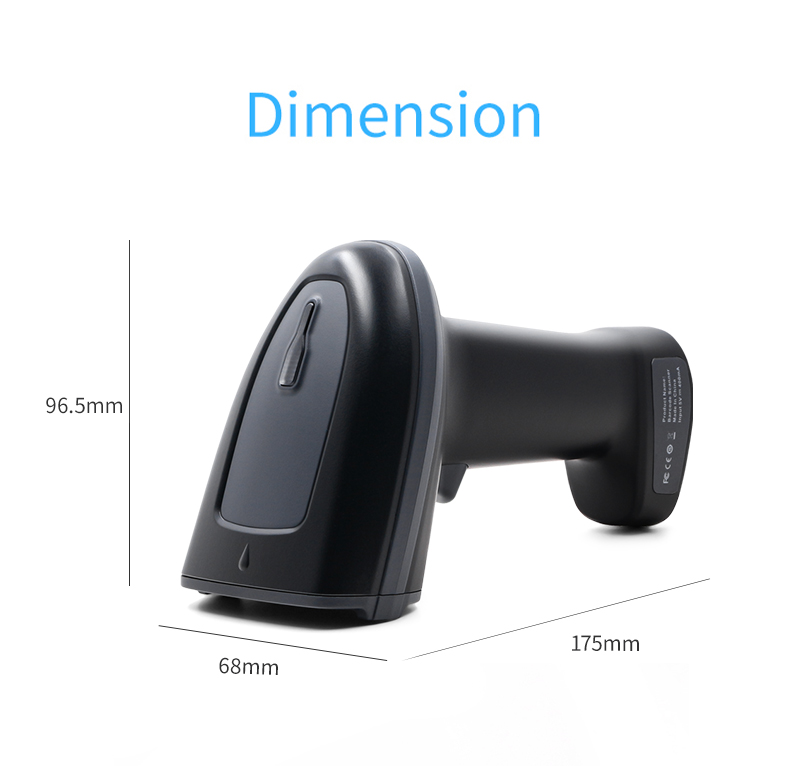

Dimension(mm)

Net Weight

Tips

68(W)×96.5 (D)×175(H)

About 200g

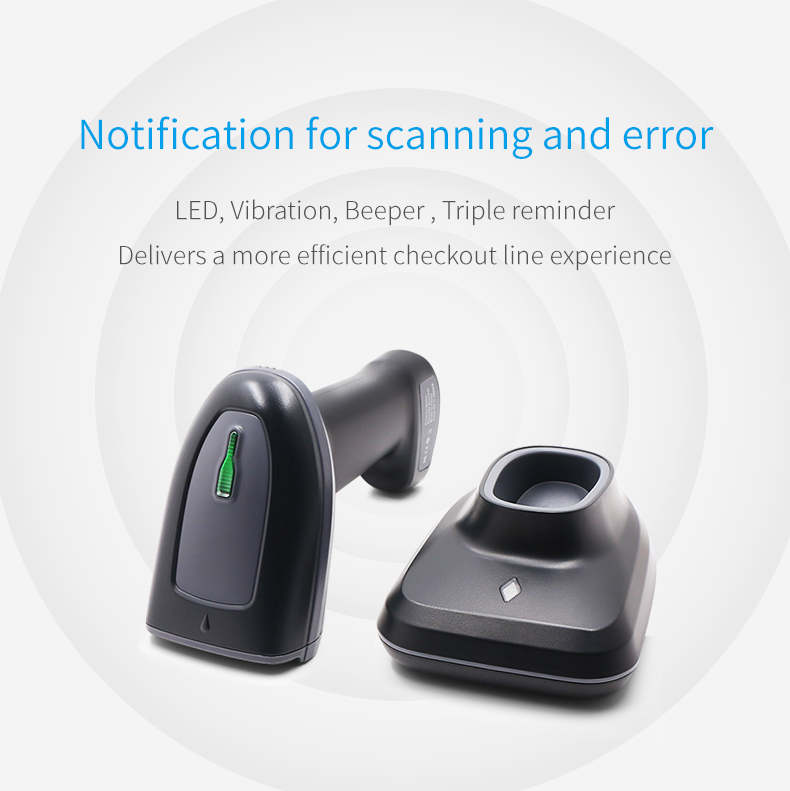

Buzzer,LED indication,vibrator

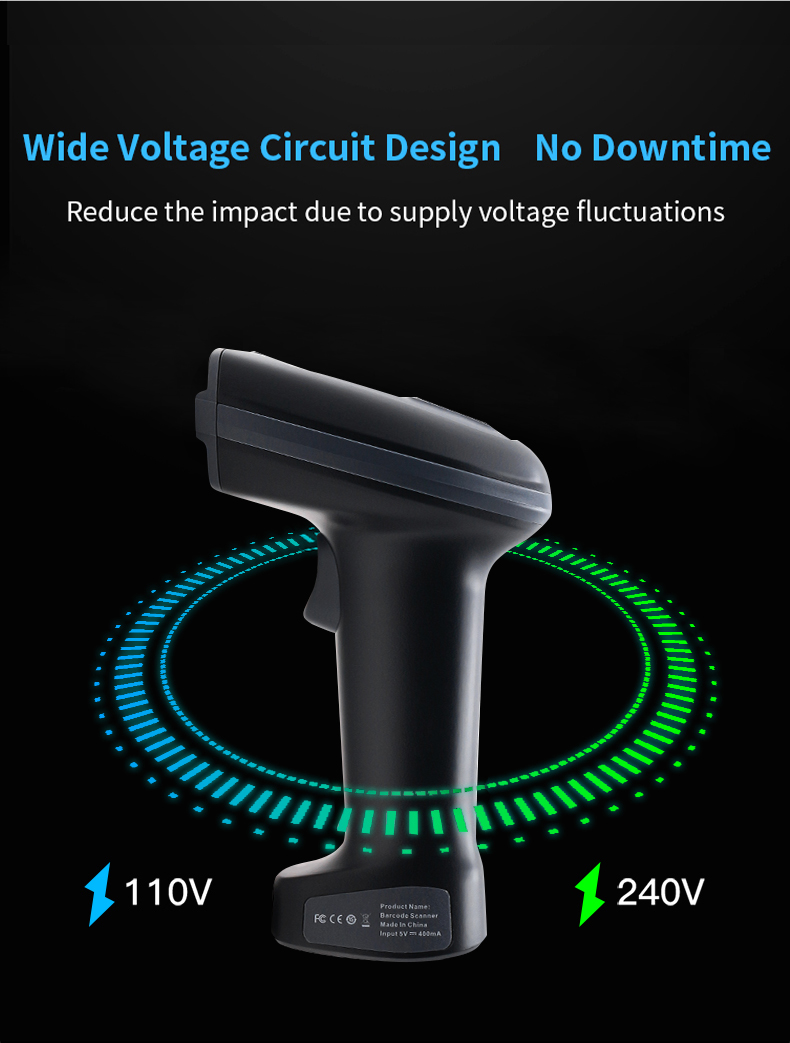

Operating Voltage

5 VDC±5%

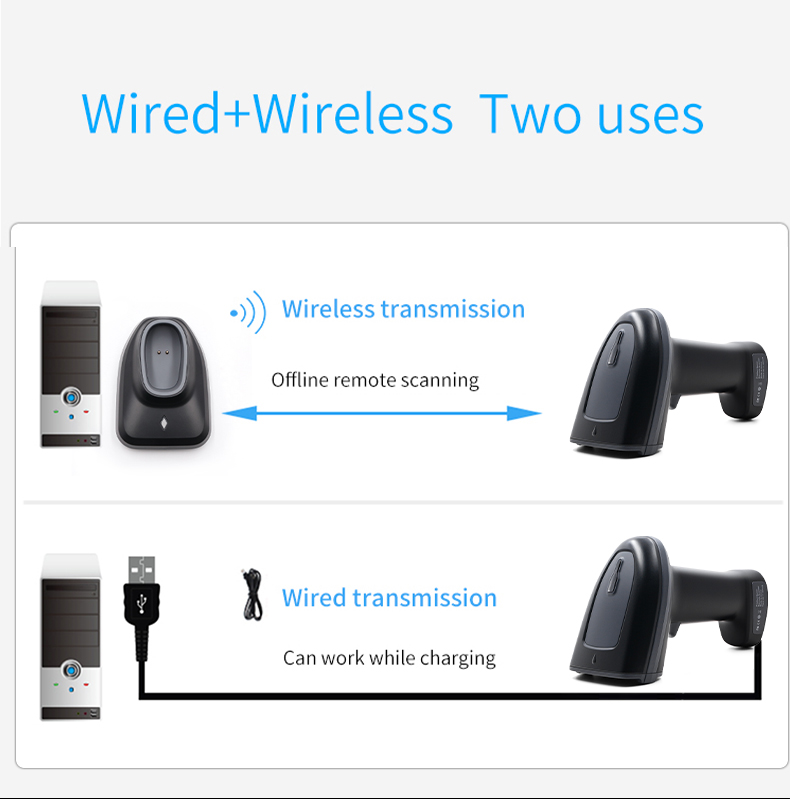

Wireless

Communication mode

Synchronous upload mode/manual batch upload mode

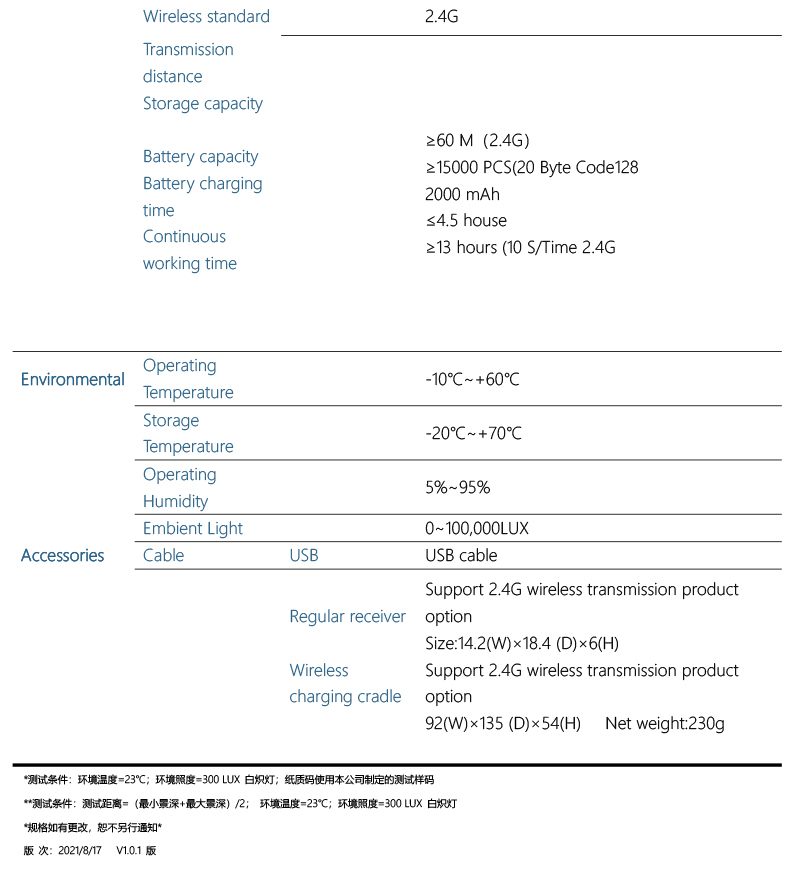

Wireless standard

2.4G/ Blue tooth

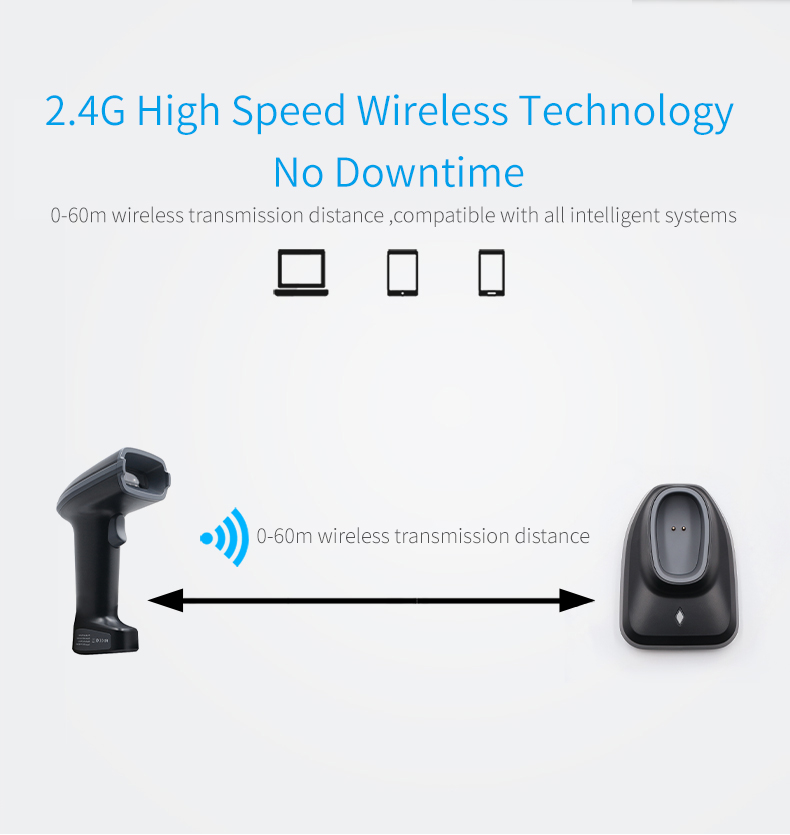

Transmission distance

Storage capacity

Battery capacity

Battery charging time

Continuous working time

≥60 M（2.4G）

≥15000 PCS(20 Byte Code128

2000 mAh

≤4.5 house

≥13 hours (10 S/Time 2.4G

Environmental

Operating Temperature

-10℃~+60℃

Storage Temperature

-20℃~+70℃

Operating Humidity

5%~95%

Embient Light

0~100,000LUX

Accessories

Cable

USB

USB cable

Regular receiver

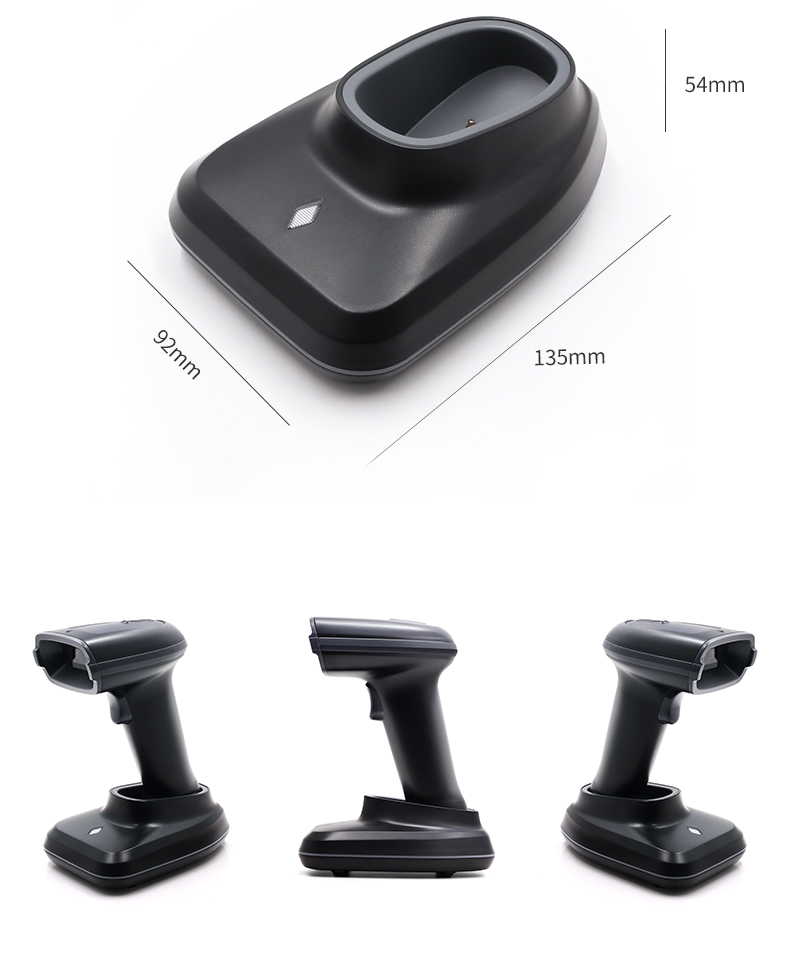

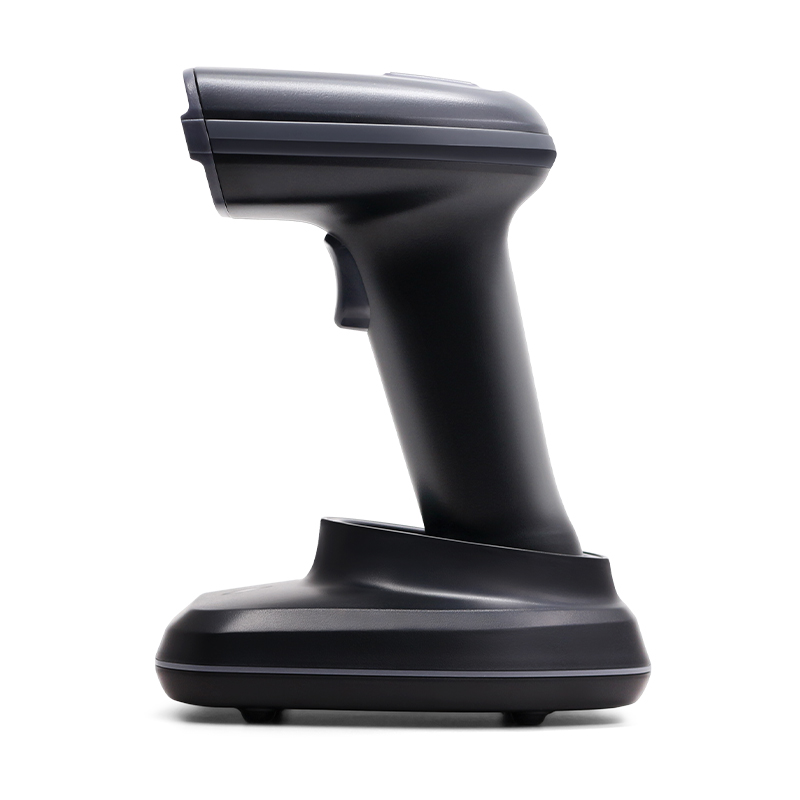

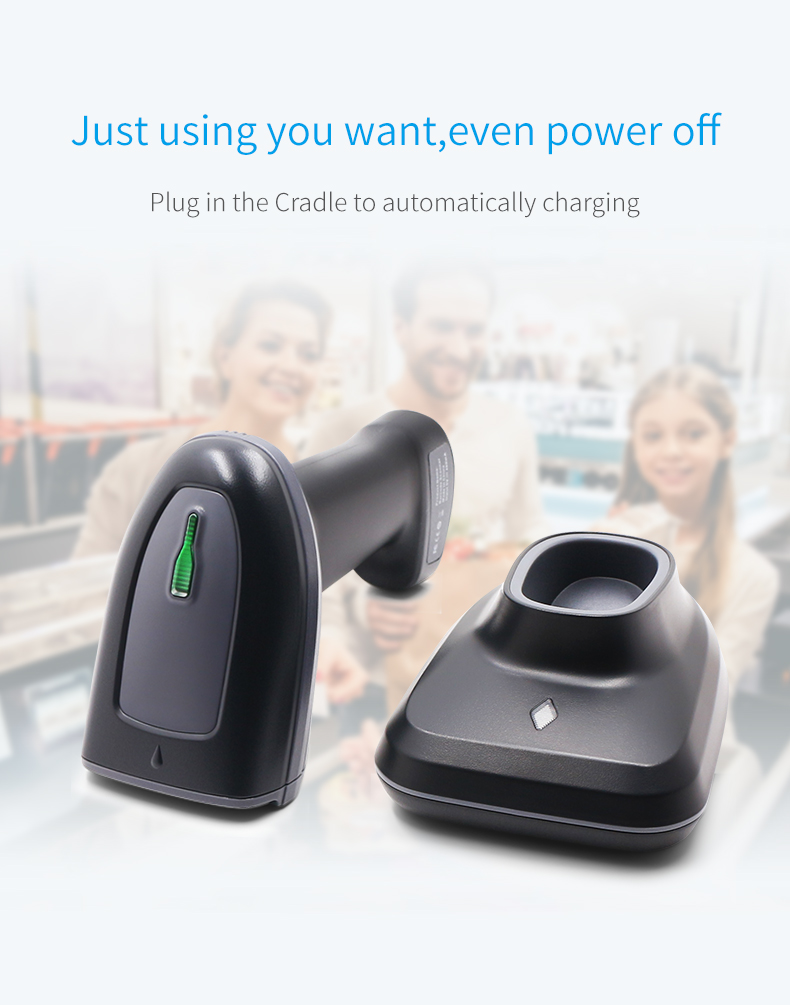

Wireless charging cradle

Support 2.4G wireless transmission product option

Size:14.2(W)×18.4 (D)×6(H)

Support 2.4G wireless transmission product option

92(W)×135 (D)×54(H)   Net weight:230g
