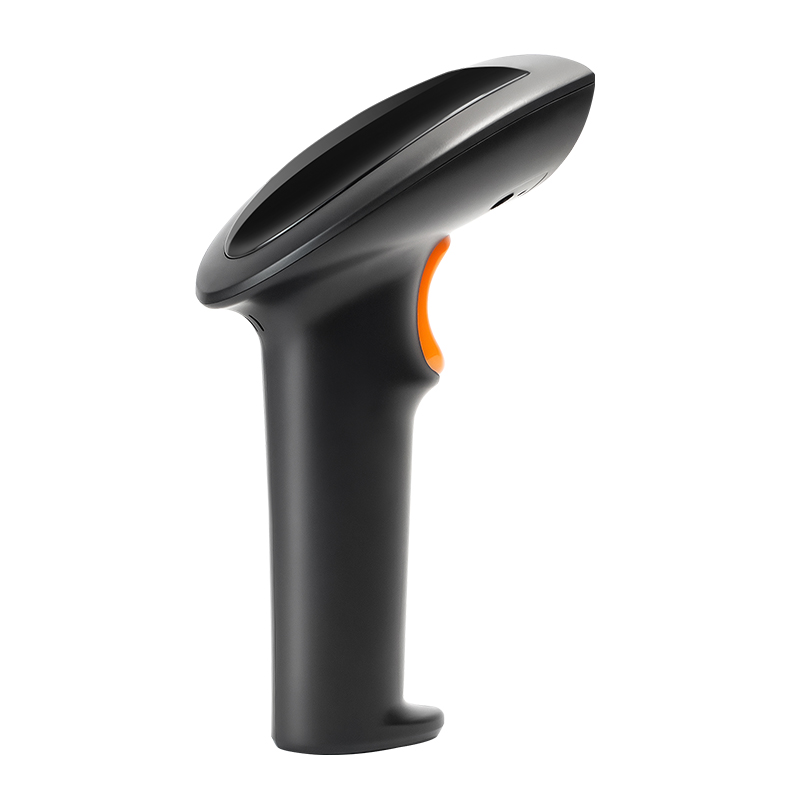

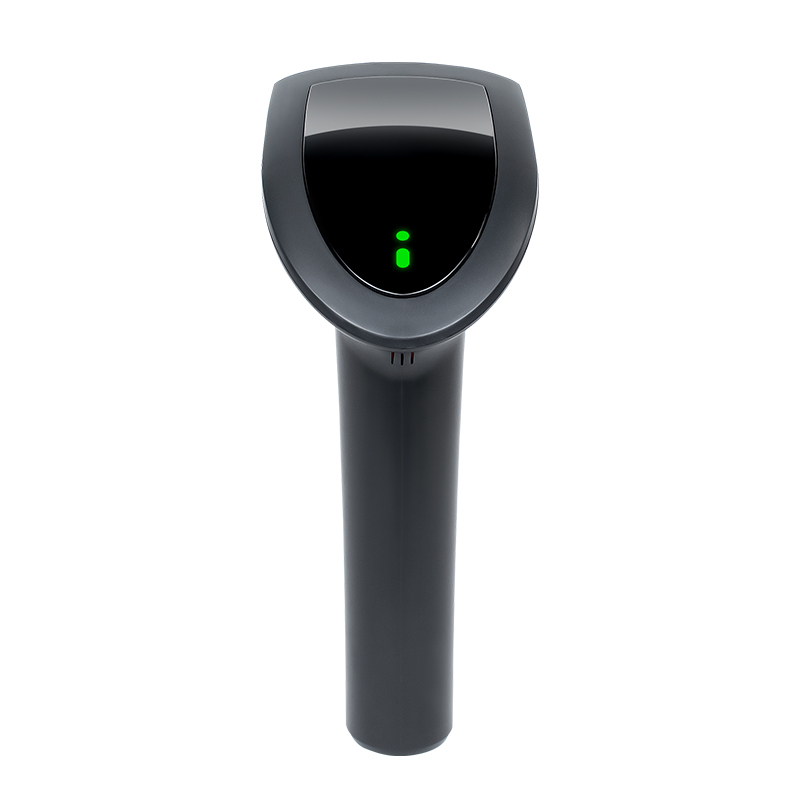

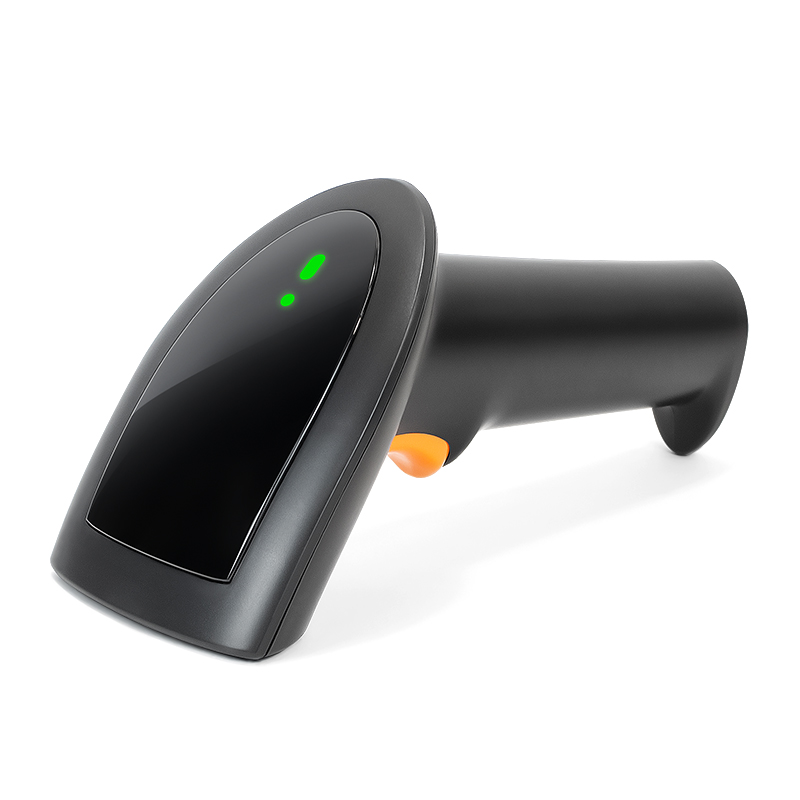

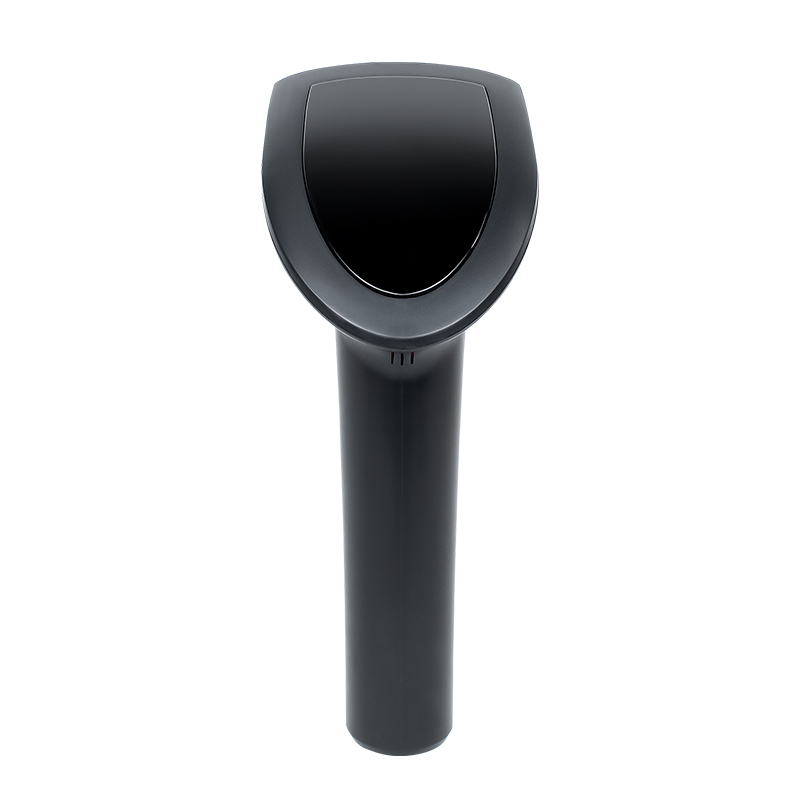

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> HS25 1D 2D HANDHELDWIRED BARCODE SCANNER
Features | |
Sensor | CMOS 640*480 |
Light Source | White LED |
Aiming | Green Point LED |
Scan Angle | Skew±60°Pitch±60°Roll 360° |
Resolution | ≥5mil |
Print Contrast | ≥20% |
Decode Capacity | |
1D | UPC-A, UPC-E, EAN-8, EAN-13, MSI, ISSN, ISBN, Code 93, Code 11, Code 128, Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, GS1 DataBar |
2D | PDF417, Micro PDF417, QR Code, Micro QR, Aztec, Data Matrix |
Decode Range（Typical） | |
Code39（5mil） | 30mm~80mm Barcode Size：25mm*10mm |
QR（15mil） | 30mm~200mm Barcode Size：8mm*8mm |
EAN-13（13mil） | 30mm~270mm Barcode Size：31mm*17mm |
Physical | |
Interface | USB/RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current（Typical） | 220mA（5 VDC） |
Operating Current（Max） | 250mA（5 VDC） |
Standby Current | 95mA （5 VDC） |
Idle Current | 30mA （5 VDC） |
Fixed Power Consumption(Typical) | 110mW（5 VDC） |
Dimension | 165(W)×67(D)×102(H)mm |
Color | Black |
Net Weight | 153g（include cable） |

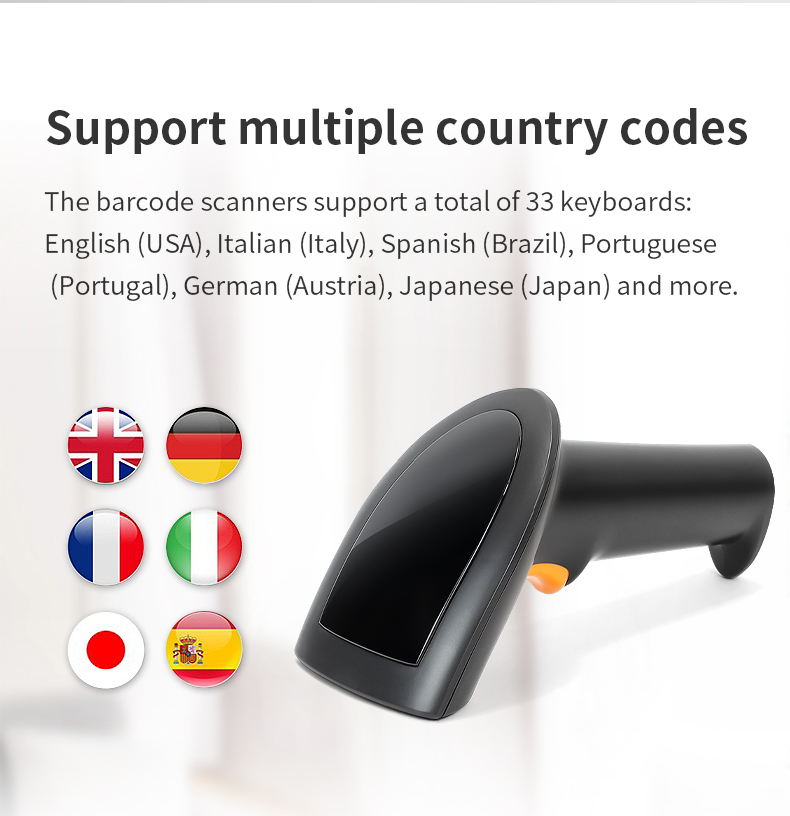

Country Keyboards | Multi-Country Keyboards |

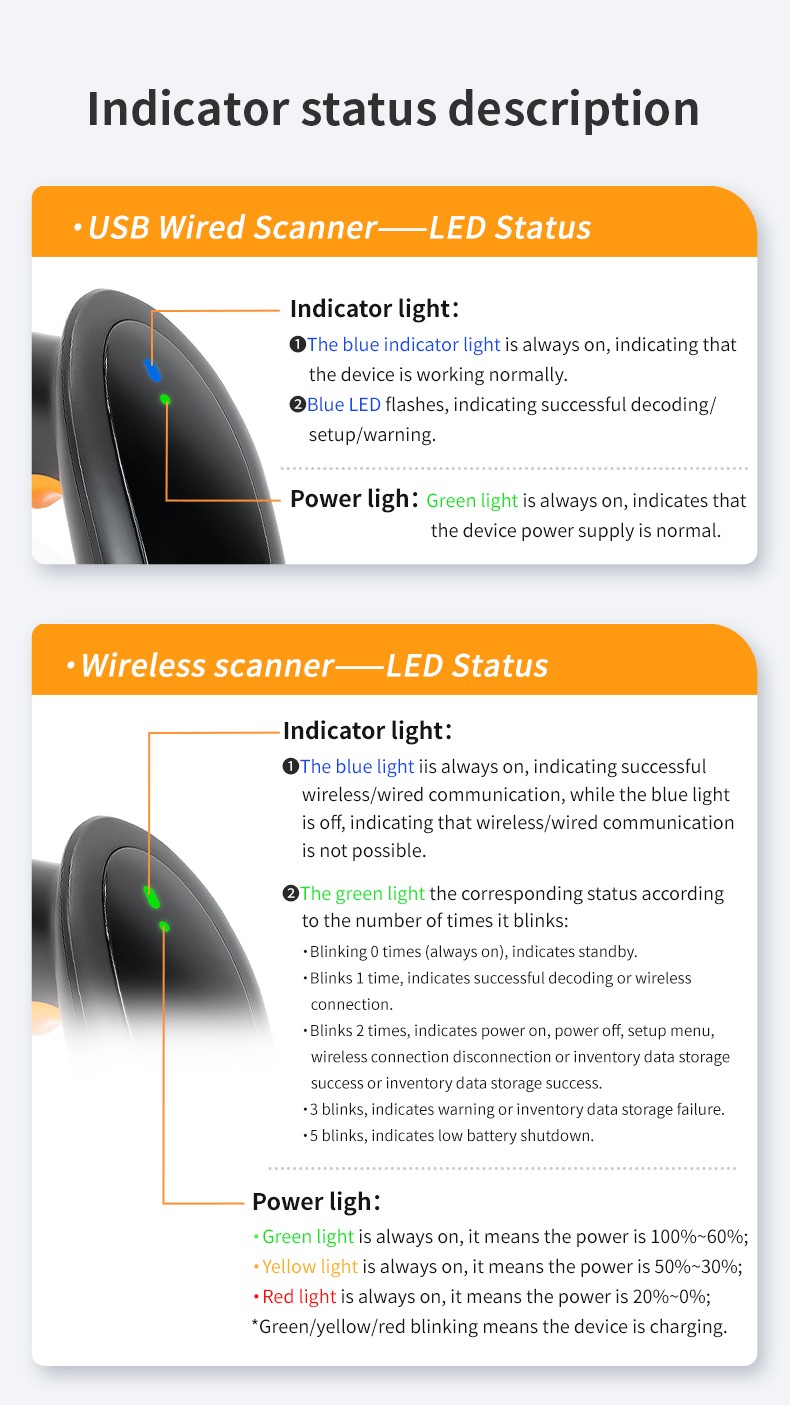

Indicator | LED, Beeper |
Environmental | |
Operating Temperature | 0℃ ~ 50℃ |
Storage Temperature | -20℃ ~ 70℃ |
Humidity | 5% ~ 95%（Non-condensing） |
Drop | Withstand 5 drops from 1 meter height to concrete. |
Sealing Level | IP52 |
ESD | EN61000-4-2，±15KV Air Charge, ±8KV Direct Charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
Accessories | |

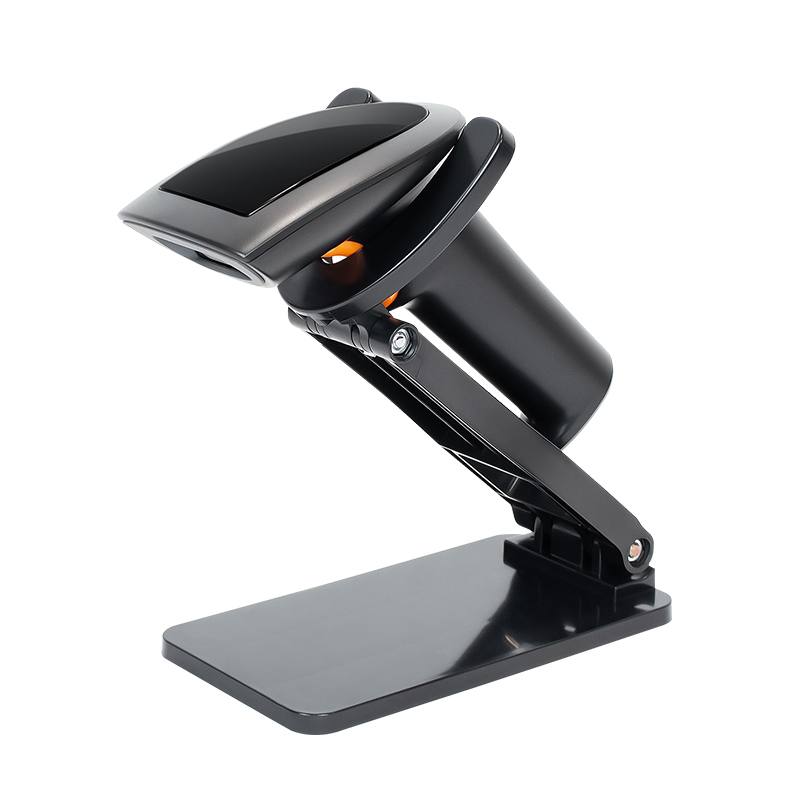

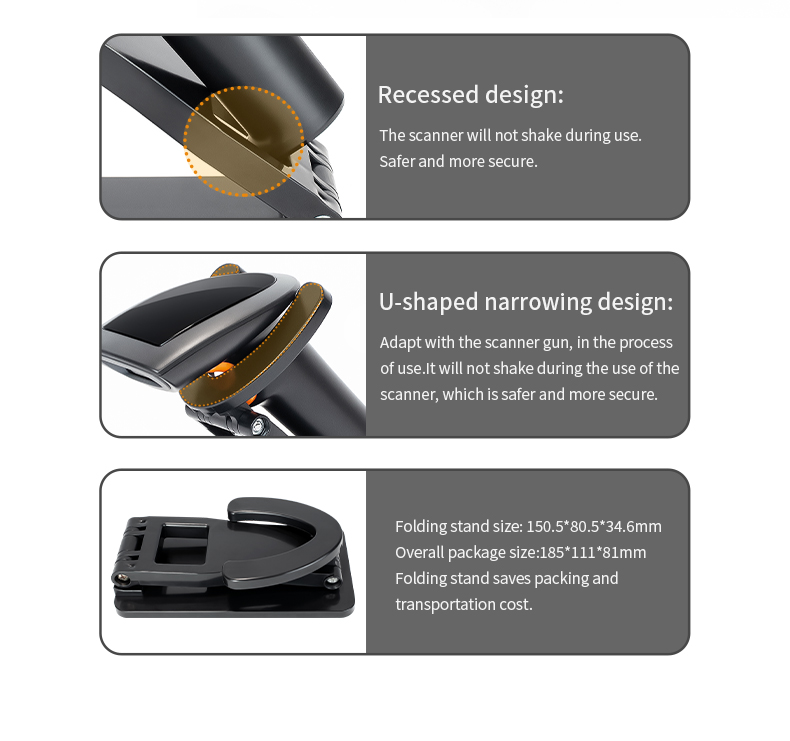

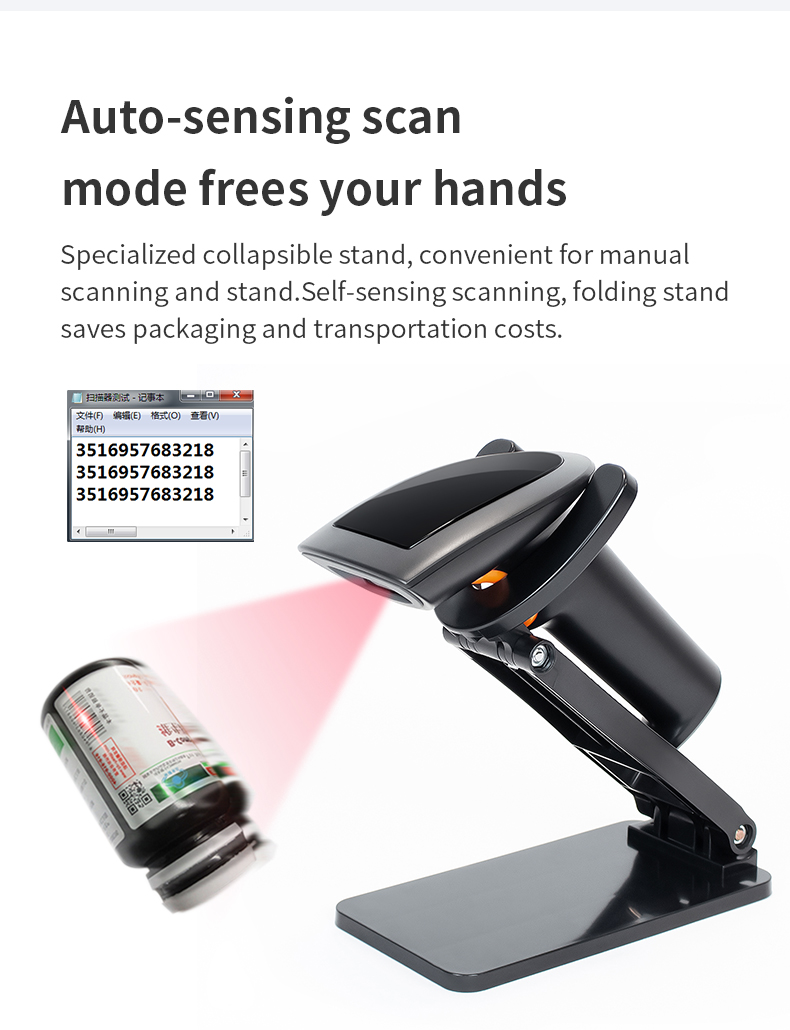

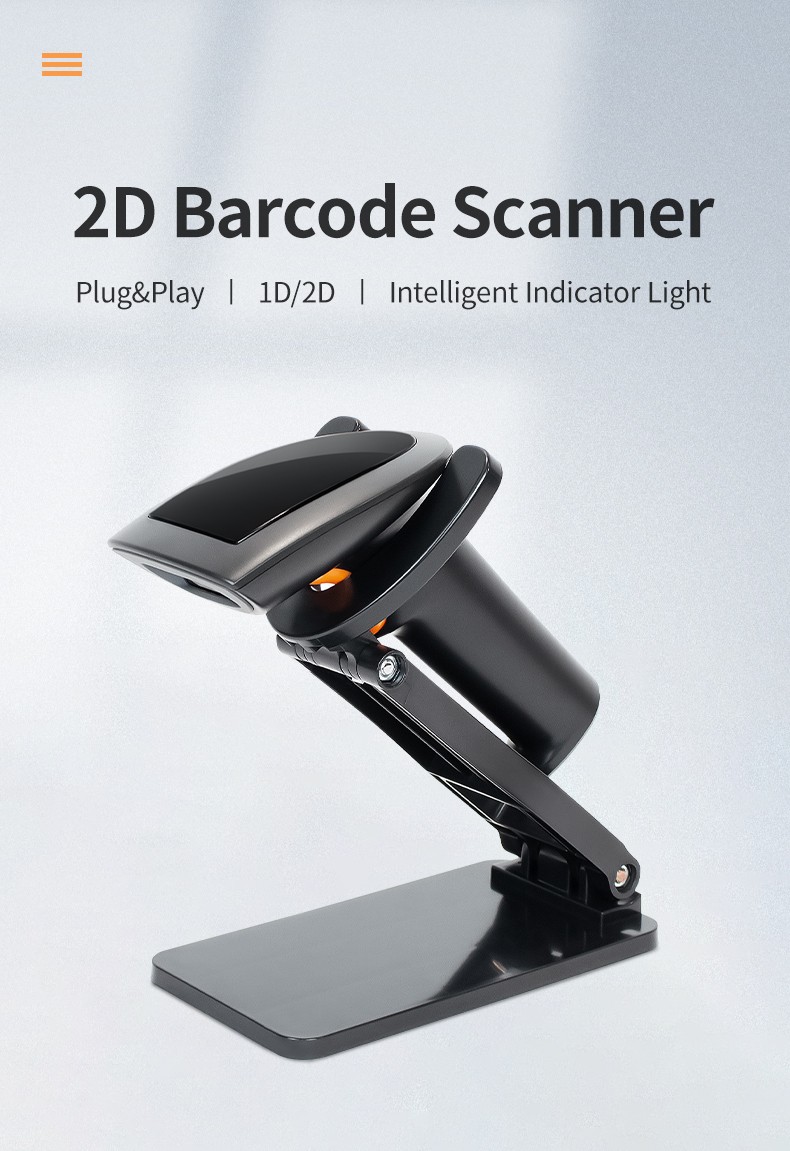

Stand Holder | Optional |
