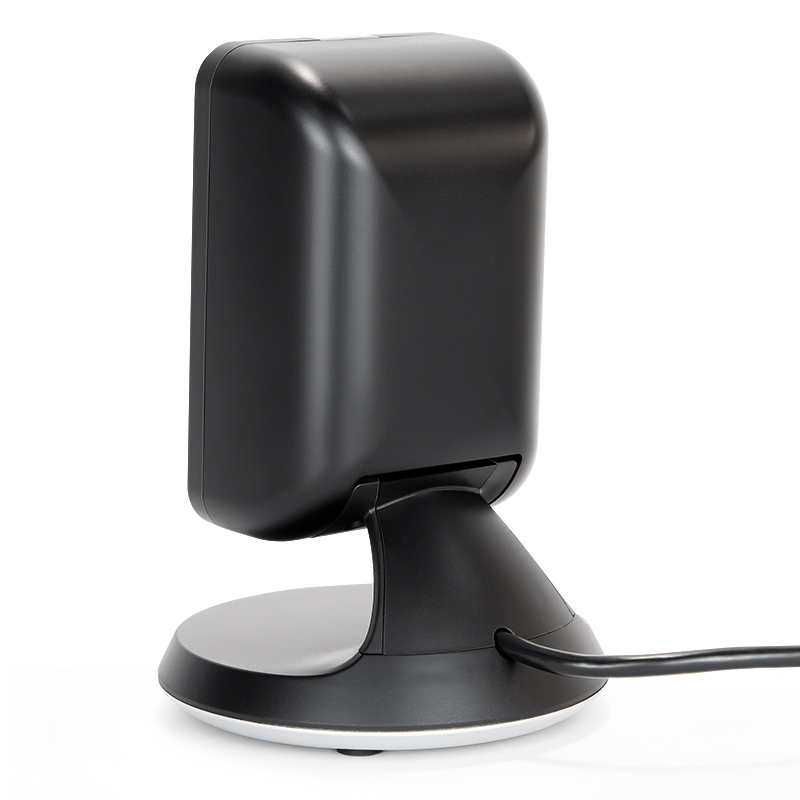

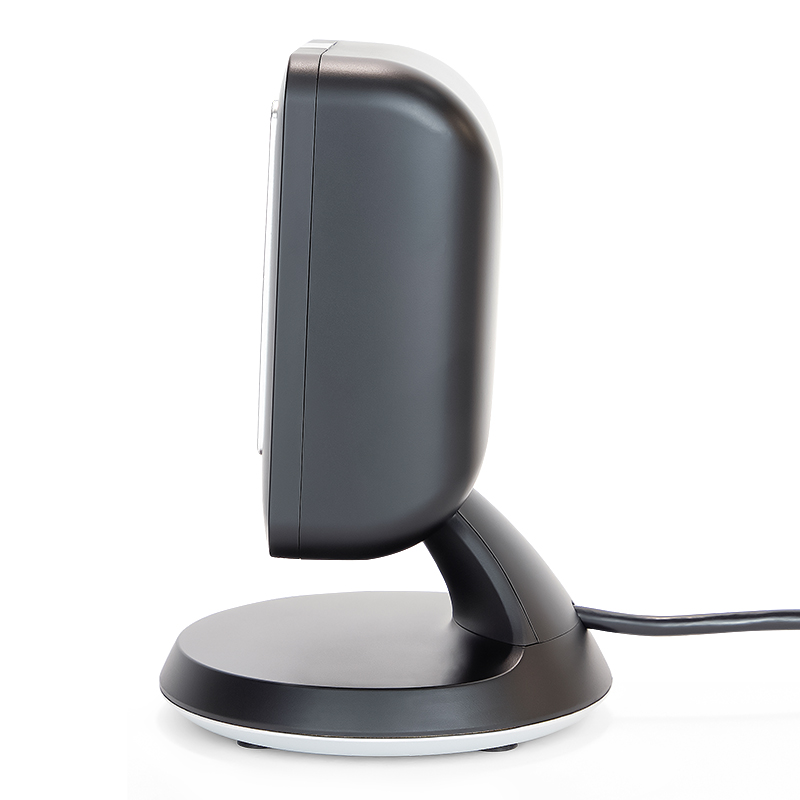

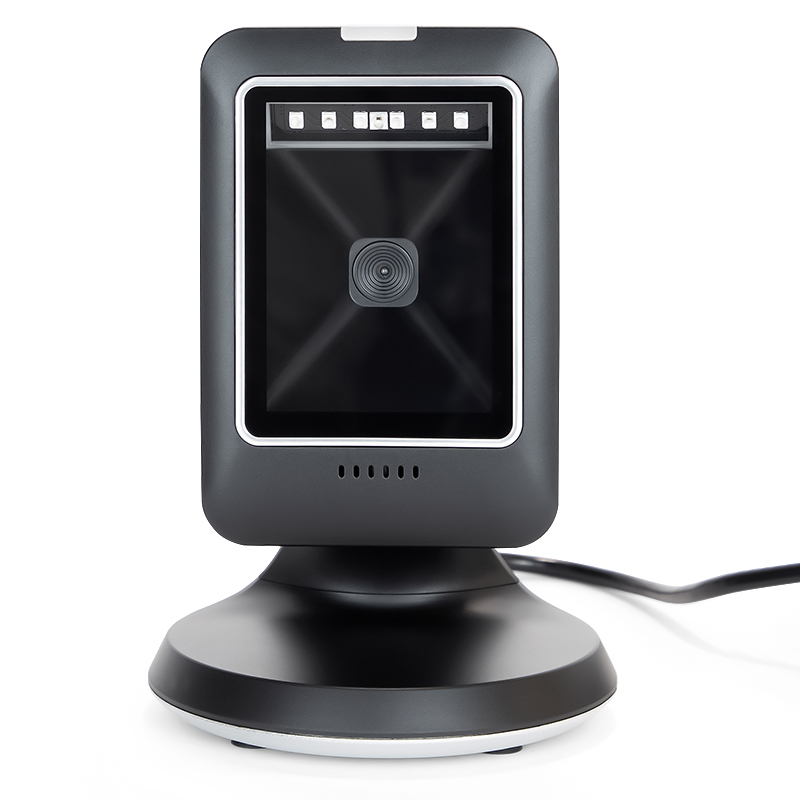

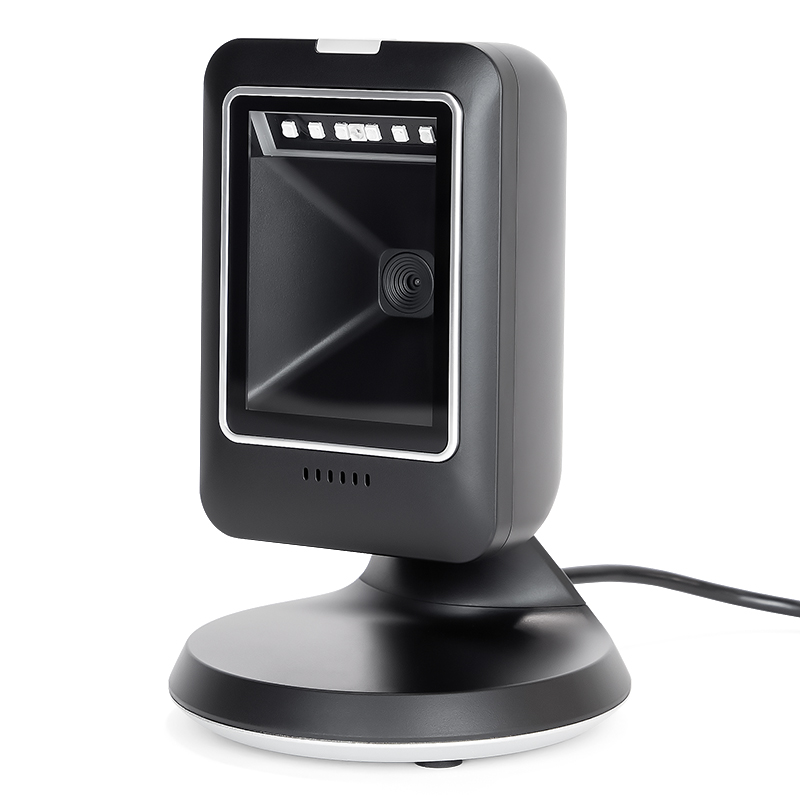

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> MP6300 Desktop 2D wired flatbed scanner
Specification | |
Sensor | CMOS 640*480 |
Light source | Red light LED +Infrared LED |
Scan Angle | Pitch±50°Skew±70°Roll360° |
Resolution | ≥5mil |
Print contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、Code 39、Code 32、Code 93、EAN-8、EAN-13、ISBN、ISSN、UPC-A、UPC-E、GS1 DataBar、ISBT128、NEC 2 of 5、MSI Plessey、GS1 128、Industrial 2 of 5、Telepen、Interleaved 2 of 5、Matrix 2 of 5、Hong Kong 2 of 5、Postal Code、Trioptic、Straight 2 of 5 IATA |
2D | QR Code、Micro QR、Data Matrix、PDF417、Micro PDF417、HANXIN、Aztec Code、Maxi code |
Decode Range（Typical） | |
Code39（5mil） | 10mm~70mm Barcode size:25mm*10mm |
EAN-13（13mil） | 10mm~180mm Barcode size:31mm*17mm |
QR（15mil） | 0mm~140mm Barcode size:8mm*8mm |
Physical | |
Interface | USB / RS232 |
Operating Voltage | 5 VDC±5% |
Operating Current（Typical） | 310mA（5 VDC） |
Operating Current（Max） | 350mA（5 VDC） |
Standby Current | 200mA（5 VDC） |
Fixed Power Consumption(Typical) | 1550mW |
Product size | 99(W)×99(D)×146(H) mm |
Color | Black |
N.W | 330g with cable |
Country Keyboards | Multi-Country Keyboards |
Indicator | LED, Beeper |
Environmental | |
Operating Temperature | -20℃ ~ 60℃ |
Storage Temperature | -20℃ ~ 70℃ |
Humidity | 5% ~ 95%（Non-condensing） |
Sealing Level | IP52 |
ESD | ESD EN61000-4-2，±15KV Air Charge, ±8KV Direct Charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
