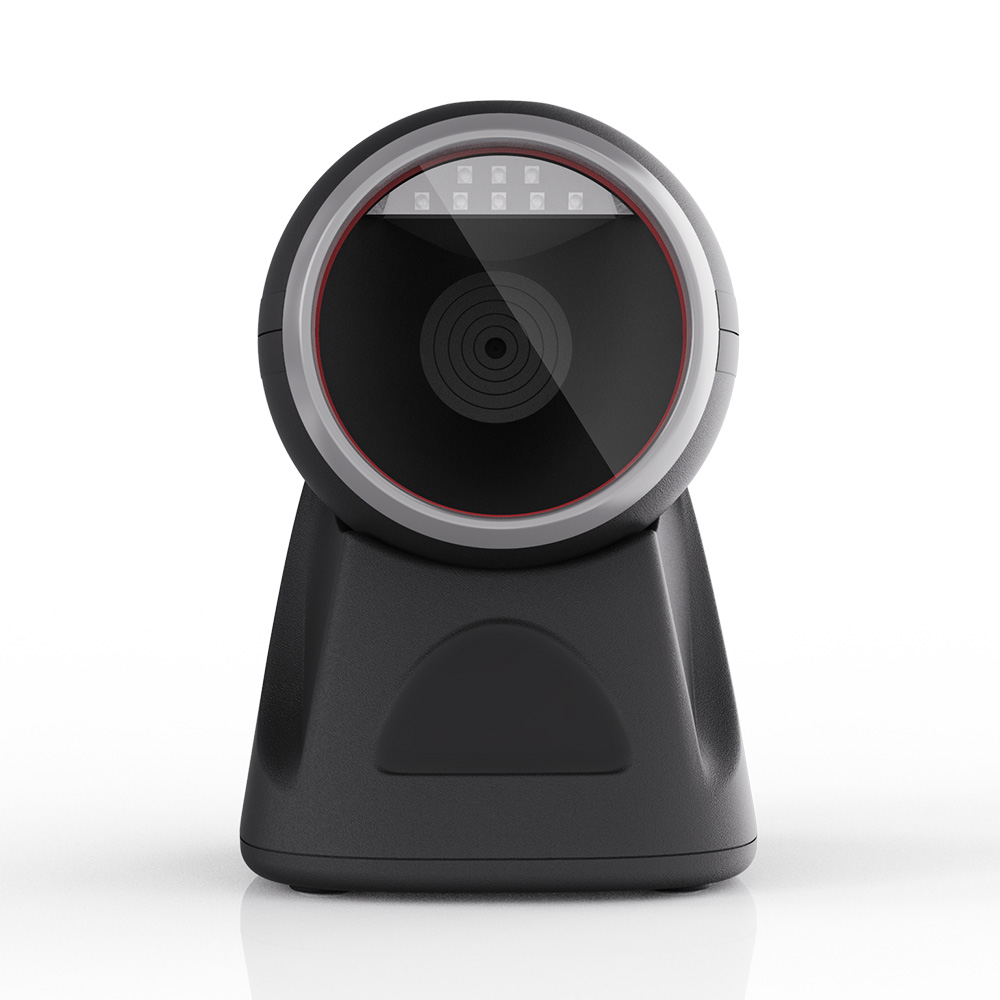

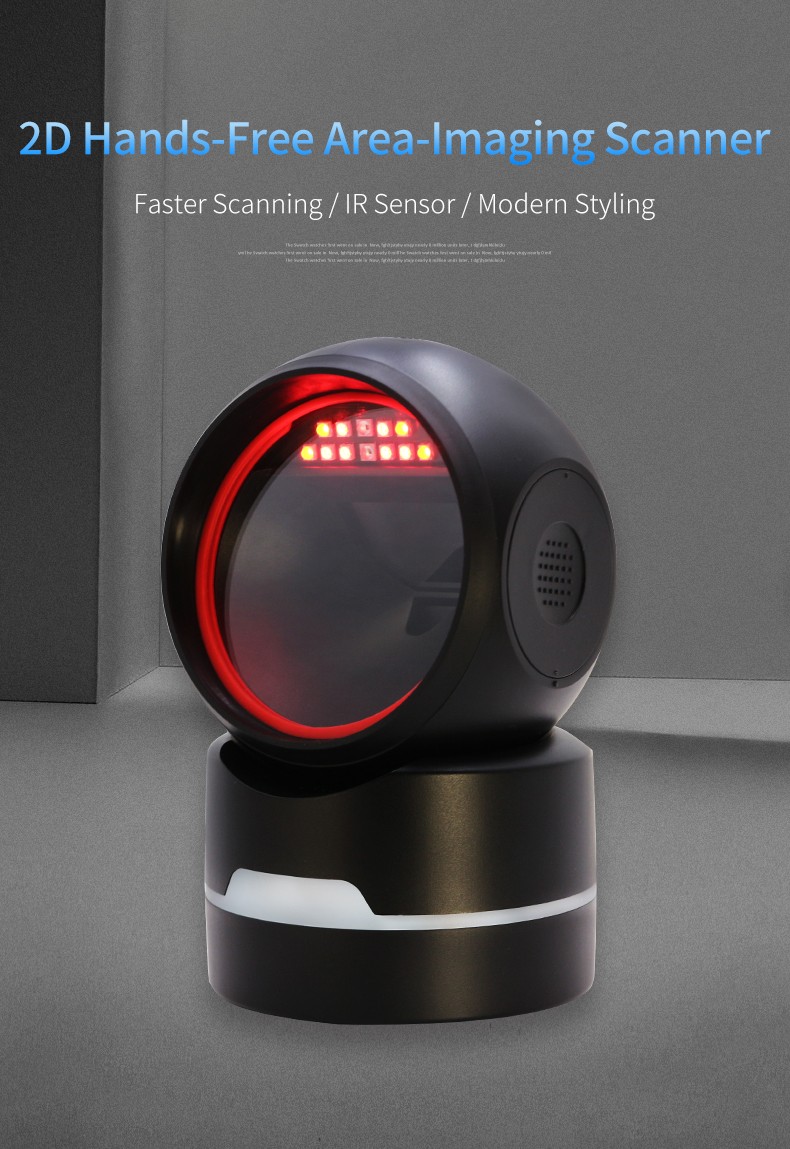

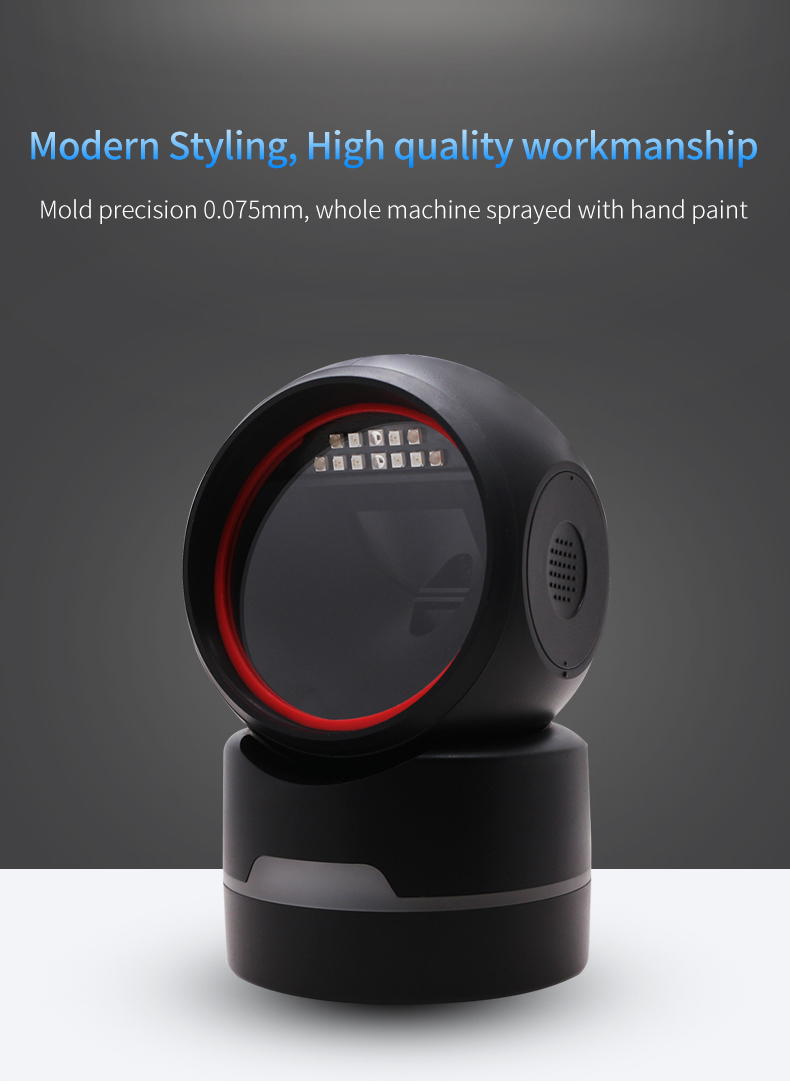

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> MP6800 2D WIRED DESKTOP SCANNER FLETBED
Performance | |
Image Sensor | CMOS 640*480 |

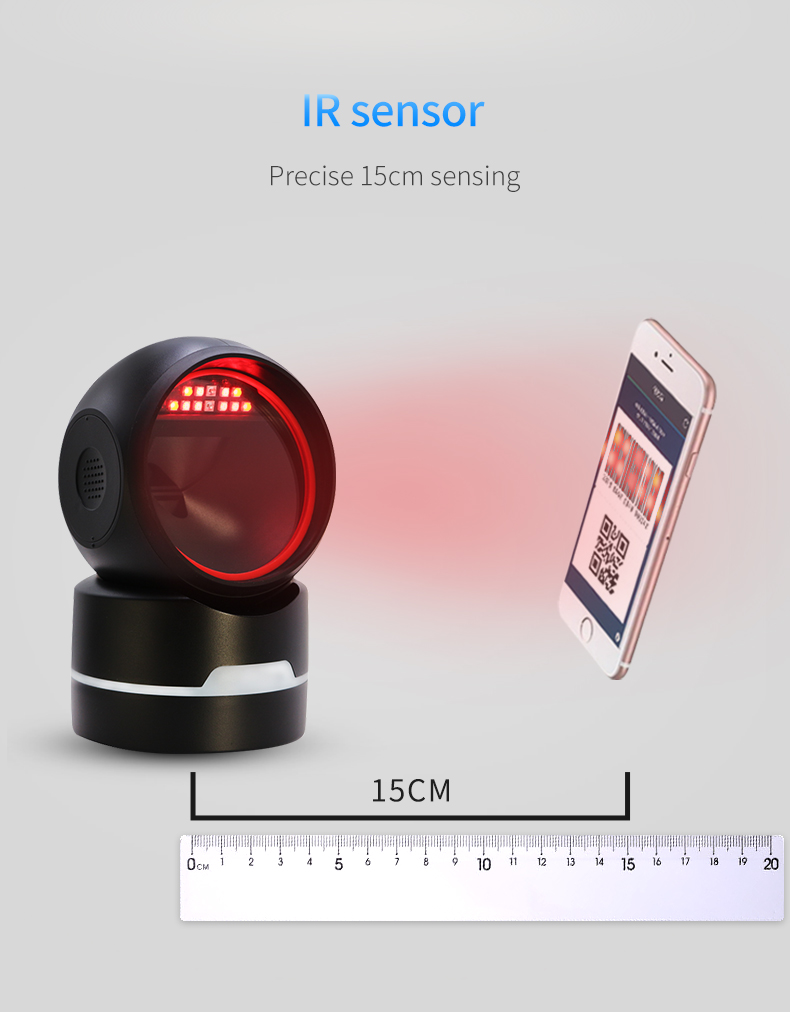

Light Source | Red LED + Infrared LED |
Scan Angle | Skew±60° Pitch±60° Roll 360° |
FOV | D=56° H =42° V =33° |
Resolution | ≥3.9mil |
Minimum Print Contrast | ≥20% |
Decode Capacity | |
1D | Codabar、Code 11、Code 128、 Code 39、 Code 93、 EAN-8、 EAN-13、GS1 DataBar、 UPC-A、 UPC-E、 Interleaved 2 of 5、 Industrial 2 of 5、 Matrix 2 of 5、 Straight 2 of 5 IATA、 MSI Plessey |
2D | Aztec Code、HANXIN、Maxicode、 Codablock F、 Data Matrix Code ( DPM) 、PDF417、Micro PDF417、 QR Code、 Micro QR Code、 DOT Code、Grid Matrix Code |
Typical Decode Range | |
Code39 ( 5mil) | 0mm ~60mm Barcode Size： 25mm*10mm |
EAN-13 ( 13mil) | 0mm ~230mm Barcode Size： 31mm*17mm |
QR ( 15mil) | 0mm ~160mm Barcode Size： 8mm*8mm |
Physical | |
Interface | USB / RS232 |
Voltage | 5 VDC± 5% |
Current (Typical) | 270mA ( 5 VDC) |
Current (Max) | 320mA ( 5 VDC) |
Standby Current | 170mA ( 5 VDC) |
Power Consumption(Typical) | 1350mW |
Dimension | 88(W)×86(D)×139(H) mm |
Color | Black / White |
Net Weight (approx) | 260g |
Country Keyboard Layout | Multiple Country Keyboard Layout |
Indicator | LED, Beeper |
Environment | |
Operating Temperature | 0 ℃ ~ 50℃ |
Storage Temperature | -20℃ ~ +70℃ |
Humidity | 5% ~ 95% (Non-Condensing) |
Drop | withstands multiple 1.2m drops to concrete. |
IP rating | IP50 |
ESD | EN61000-4-2, ±15KV Air Discharge、± 8KV contact Discharge |

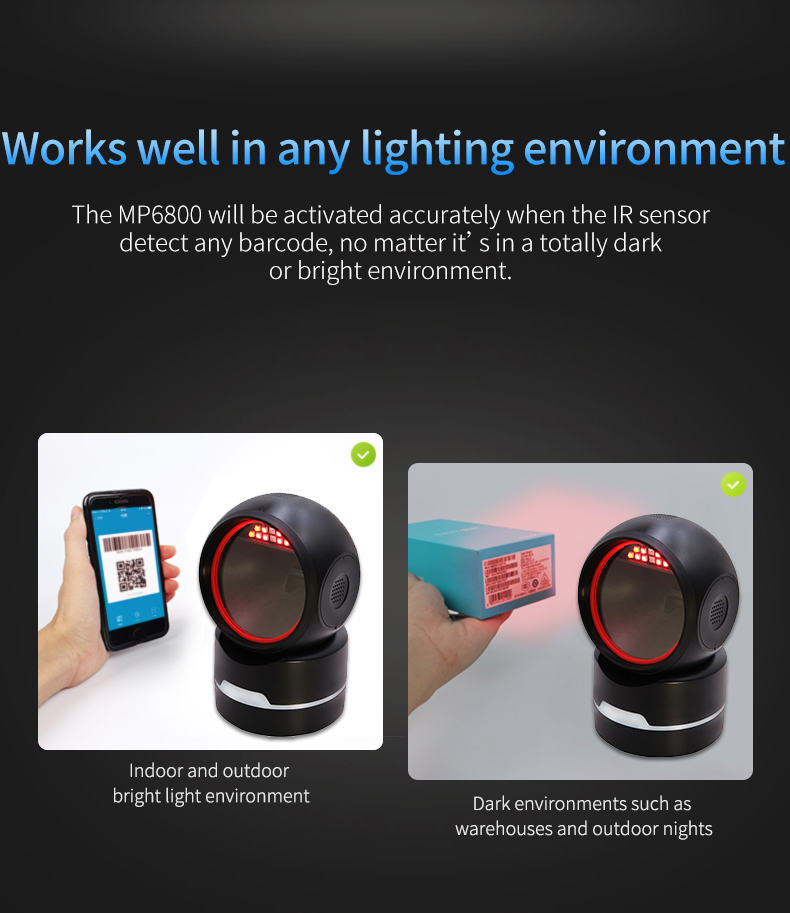

Ambient Light | 0 ~100,000LUX |
LED Safety | IEC 62471 |
Accessories | |
USB Cable | Data Transfer& Power Supply |
RS232+USB ( DC) | Data Transfer& Power Supply |
