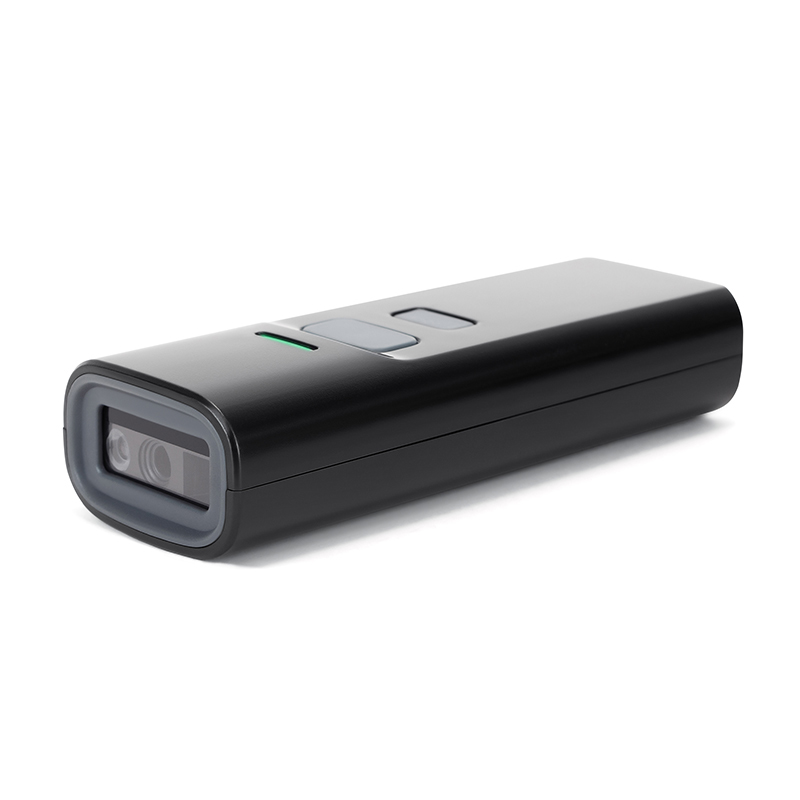

Home >> Products >> Barcode Scanner >> 2D barcode scanner >> P2300 2D WIRELESS 2.4G BARCODE SCANNER BLUETOOTH
Performance Features | |

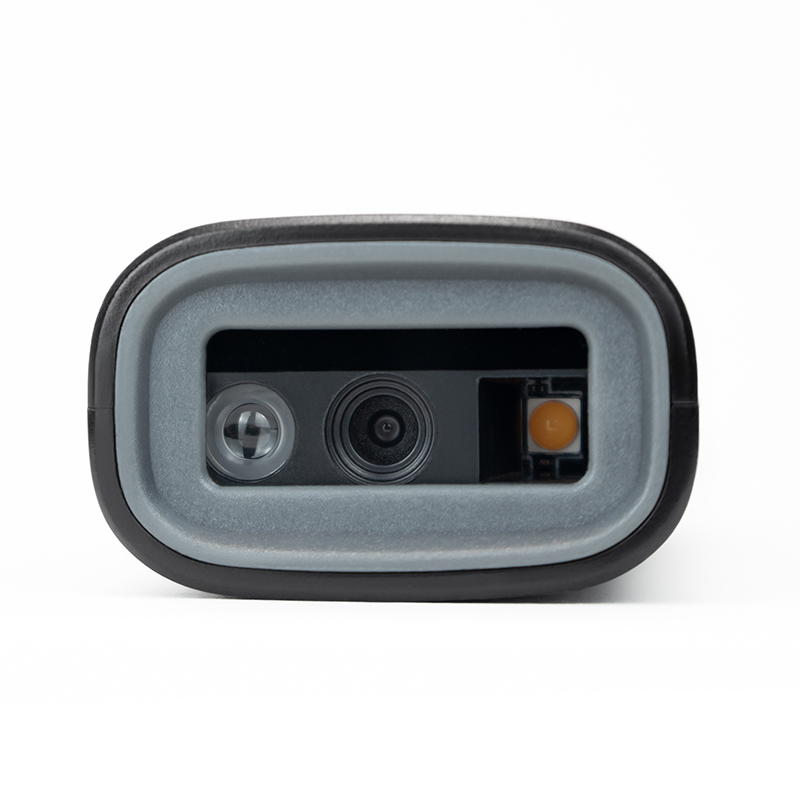

Image Sensor | CMOS 640*480 |
Illumination LED | White LED |
Aiming | Green LED Dot |
Scan Angle | Skew±60°Pitch±60°Roll 360° |
Resolution | ≥5mil |
Minimum Printed Contrast | ≥20% |
Decode Capacities | |
1D | UPC-A、UPC-E、EAN-8、EAN-13、MSI、ISSN、ISBN、Code 93、Code 11、Code 128、Codabar、Code 39、Code 32、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、GS1 DataBar |
2D | PDF417、Micro PDF417、QR Code、Micro QR、Aztec、Data Matrix |
Typical Decode Range | |
Code39（5mil） | 50mm~80mm Barcode Size：25mm*10mm |
QR（15mil） | 50mm~200mm Barcode Size：8mm*8mm |
EAN-13（13mil） | 50mm~270mm Barcode Size：31mm*17mm |

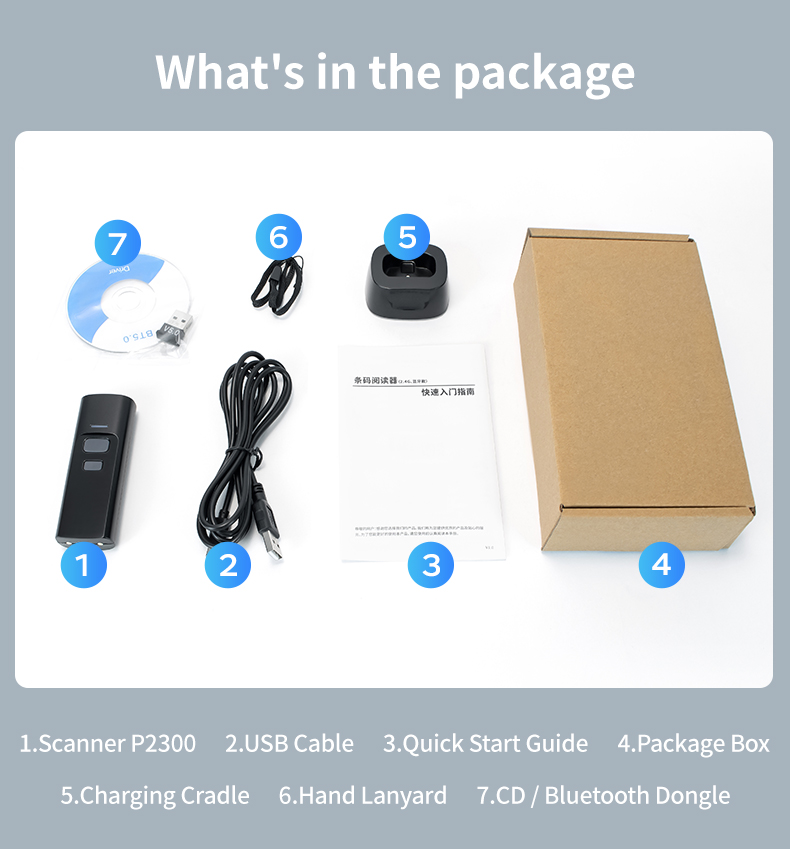

Accessories | |
Data Cable | Data Transmission/Charging |
Receiver Dongle |
Data Receiver(optional) |

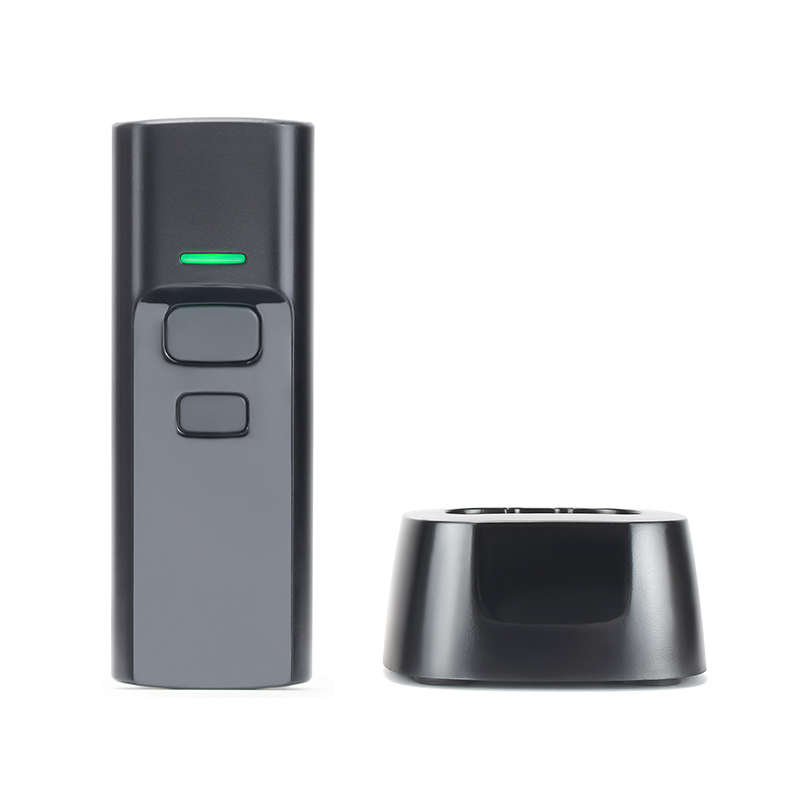

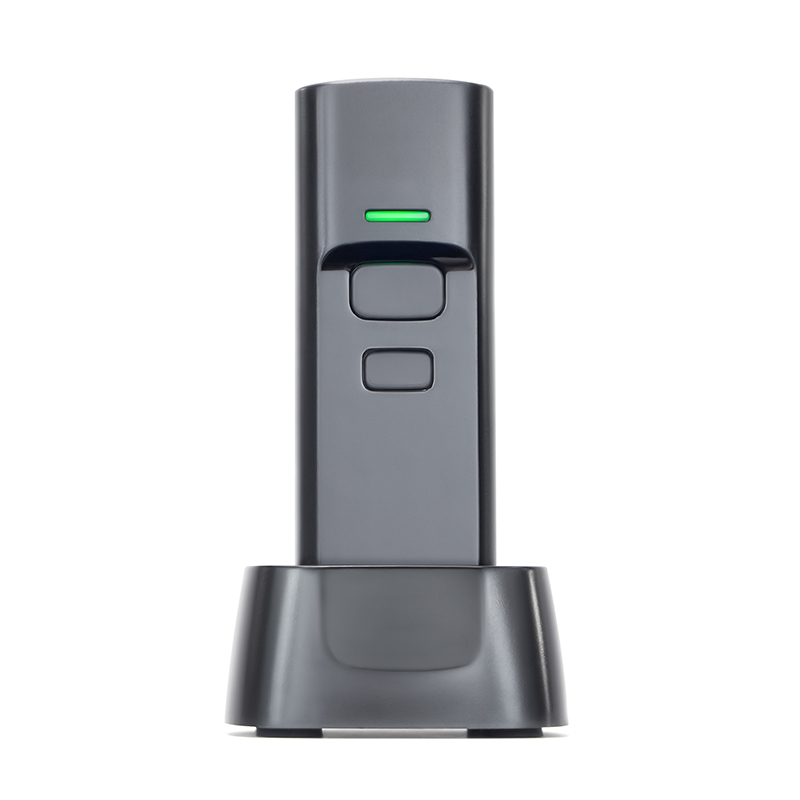

Charging Cradle | Charging |
Physical | |
Interface | USB |
Charging Voltage | 5 VDC±5% |
Operating Current（Typical） | 240mA（3.7 VDC） |
Operating Current（Max） | 300mA（3.7 VDC） |
Standby Current | 100mA（3.7 VDC） |
Idle Current | 40mA （3.7 VDC） |
Power Consumption(Typical) | 888mW（3.7 VDC） |
Dimension | 89.6(W)×32(D)×20.2(H)mm |
Color | Black |
Net Weight | 49g（Not Includes Charging Base） |

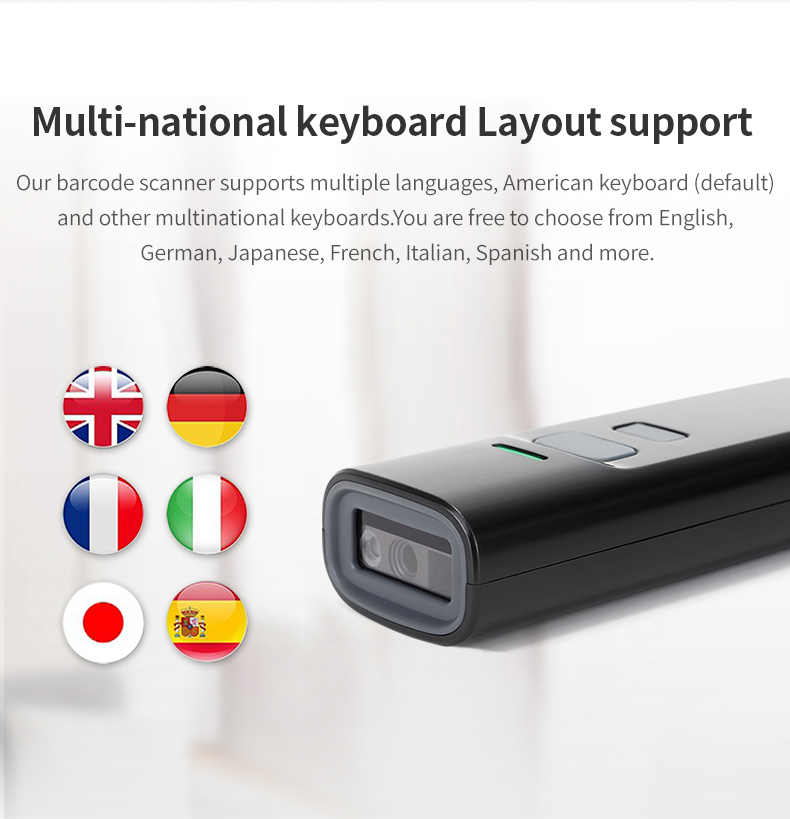

Country Keyboards | Multiple Country Keyboards |

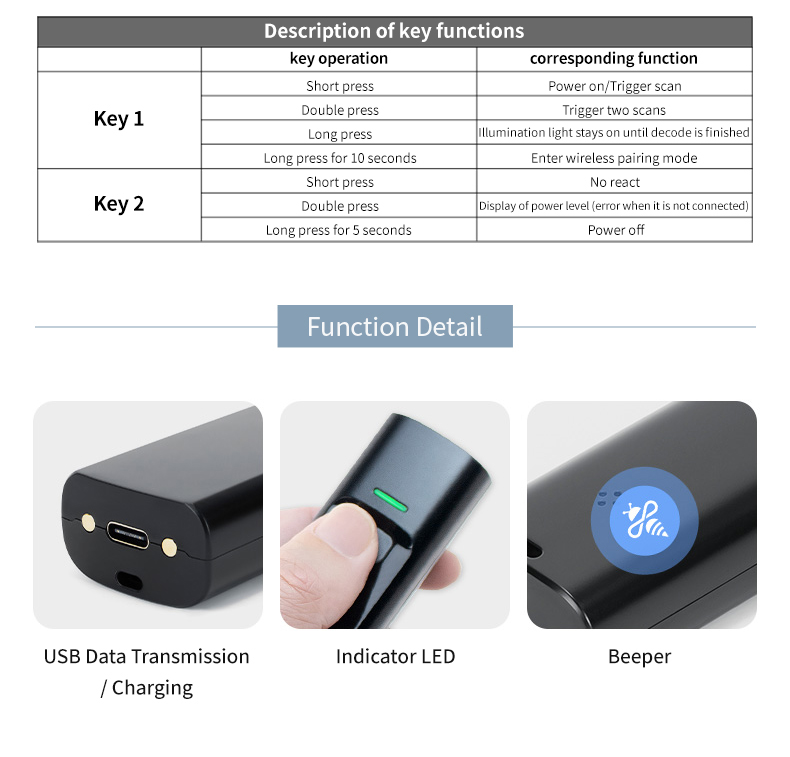

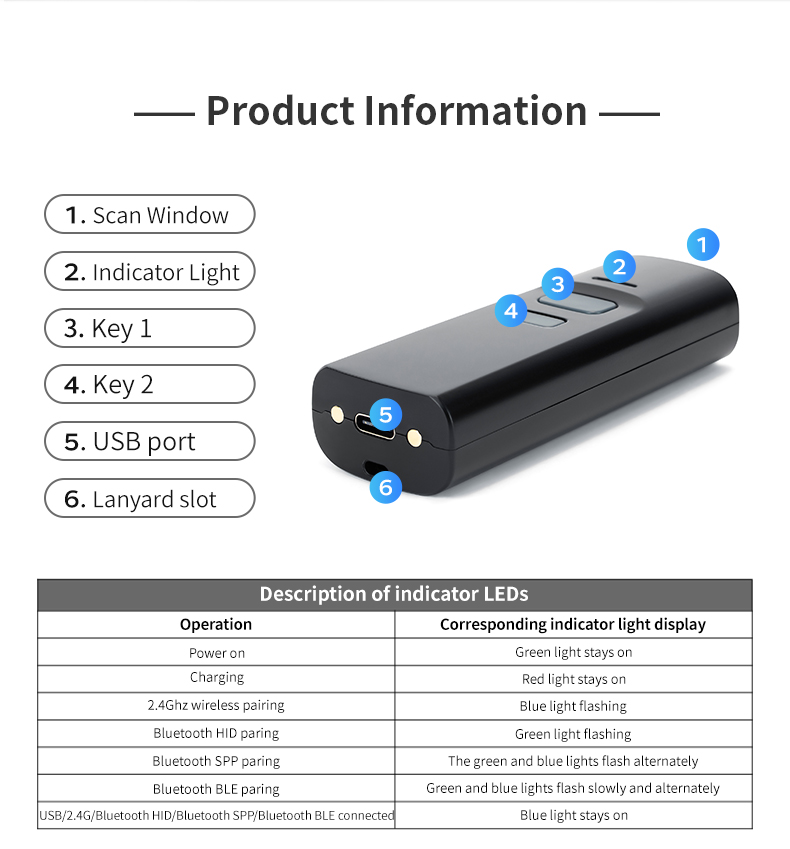

Indicator | LED, Beeper |
Wireless | |

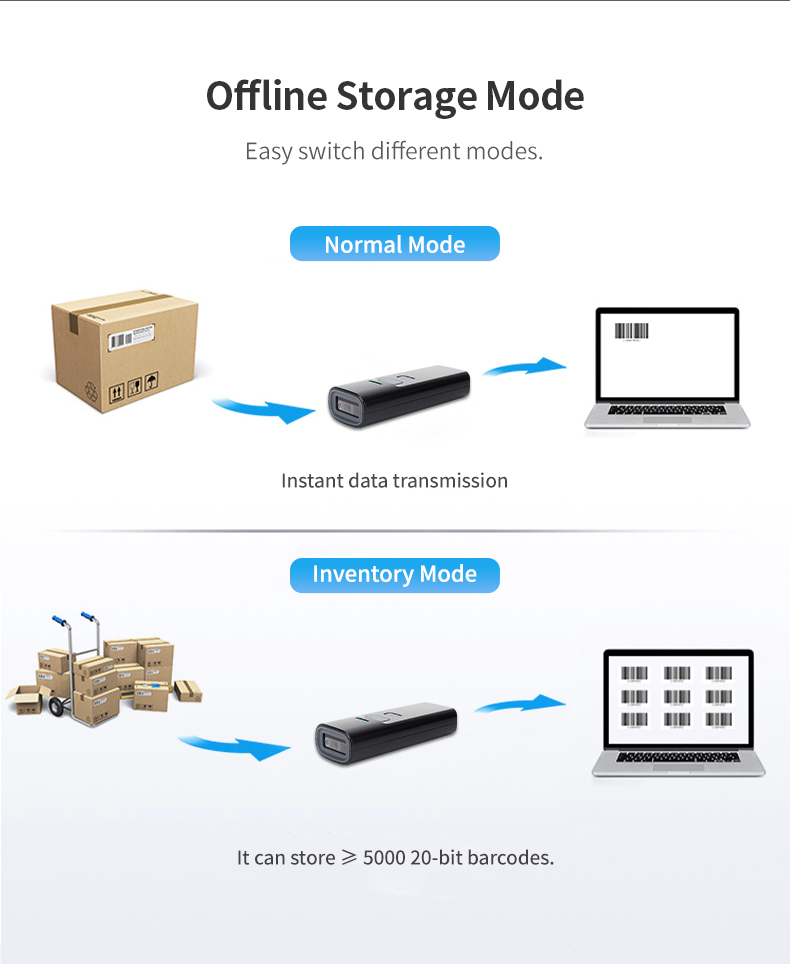

Communication Mode | Real-time Mode/Batch Mode |

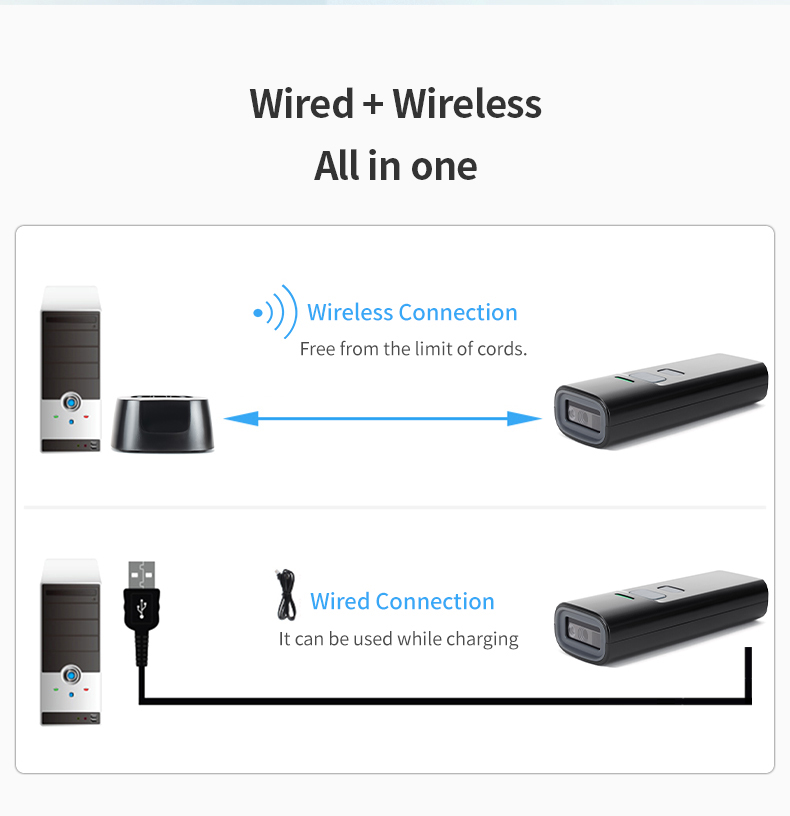

Wireless Technology | 2.4Ghz Wireless/Bluetooth |

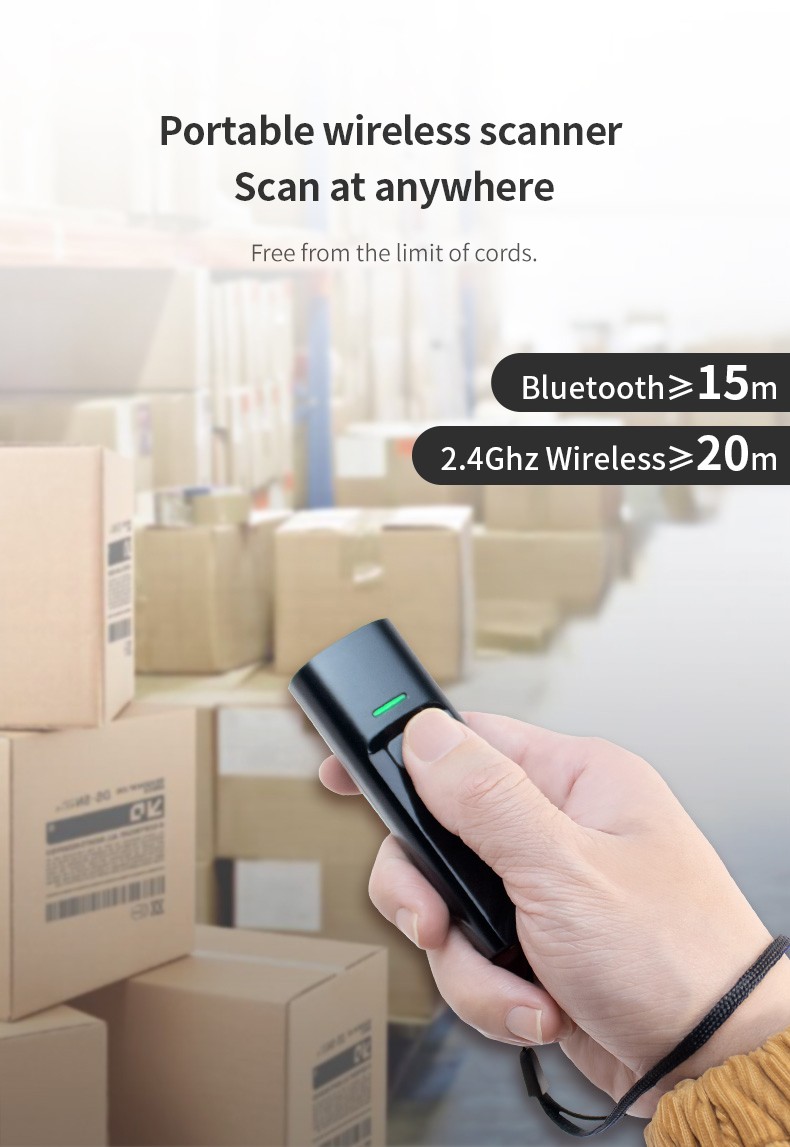

Wireless Distance（Open Space） | ≥20m（2.4G）≥15m（Bluetooth） |
Storage Capacity | ≥5000 Barcodes（20 Characters Code128 ） |
Battery Capacity | 1100 mAh |
Expected Charging Time | ≤4 Hours |
Expected Operating Time | ≥8 Hours（6 sec/scan）（2.4G Mode） |
Environmental | |
Operating Temperature | -10℃ ~ 45℃ |
Storage Temperature | -20℃ ~ 50℃ |
Humidity | 5% ~ 95%（Non-condensing） |
Drop | Withstand multi drops from 1.2 meters height to concrete. |
IP Level | IP52 |
ESD | EN61000-4-2，±15KV Air Charge、±8KV Direct Charge |
Ambient Light | 0~100,000LUX |
LED Safety | IEC 62471 |
