2D Support 8 QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ,Han xinCode 1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32
Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, the compatibility is particularly good, benchmarking projects such as New World and Shangmi, as well as foreign wine bottle barcodes, covering all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
PRODUCT DESCRIPTION
2D Support 8 QR Code , Micro QR , Data Matrix , PDF 417 , MicroPDF417 , Aztec , Maxicode ,Han xinCode 1D:Interleaved 2 of 5 ,ITF-6,ITF-14,ISB-128,Code 11,UCC/EAN-128,GS1 Databar ,Industrial 2 of 5,Code 128,EAN-13,EAN-8 ,Code 39,UPC-A,UPC-E,Codabar ,Standard 2 of 5,Plessey,MSI-Plessey,Code 93 ,GS1 composite,Matrix 2 of 5,Code 32
Suitable for chain convenience stores/supermarkets/warehousing/express logistics/agricultural input projects, high-performance global exposure and high sensitivity 2D gun, ultra large wide-angle lens, global coverage, and easy handling of various complex one-dimensional product codes and QR codes from any angle. It is a mid to high end model for all scenarios. Supports 5 * 5MM 8-bit DM barcodes
Equipped with POS machines, cash registers, and electronic scales, the compatibility is particularly good, benchmarking projects such as New World and Shangmi, as well as foreign wine bottle barcodes, covering all scenarios.
1. Support UDI medical codes
2. Support adding or hiding prefixes and suffixes
3. Support online upgrades under Windows
4. Supports USB KBW, USB COM, TTL-232
| X-760E Technical Parameter | |||||||
| Model | X-760E | ||||||
| Item | Wired 2D Barcode Scanner | ||||||
| Physical Parameter | |||||||
| Material | ABS+PC | ||||||
| Power Supply | DC 5V ±5% | ||||||
| Power Consumption | 952mW（working）,512mW（standby）,1105mW（maximum） | ||||||
| Weight | 121g±5g（Without cable） | ||||||

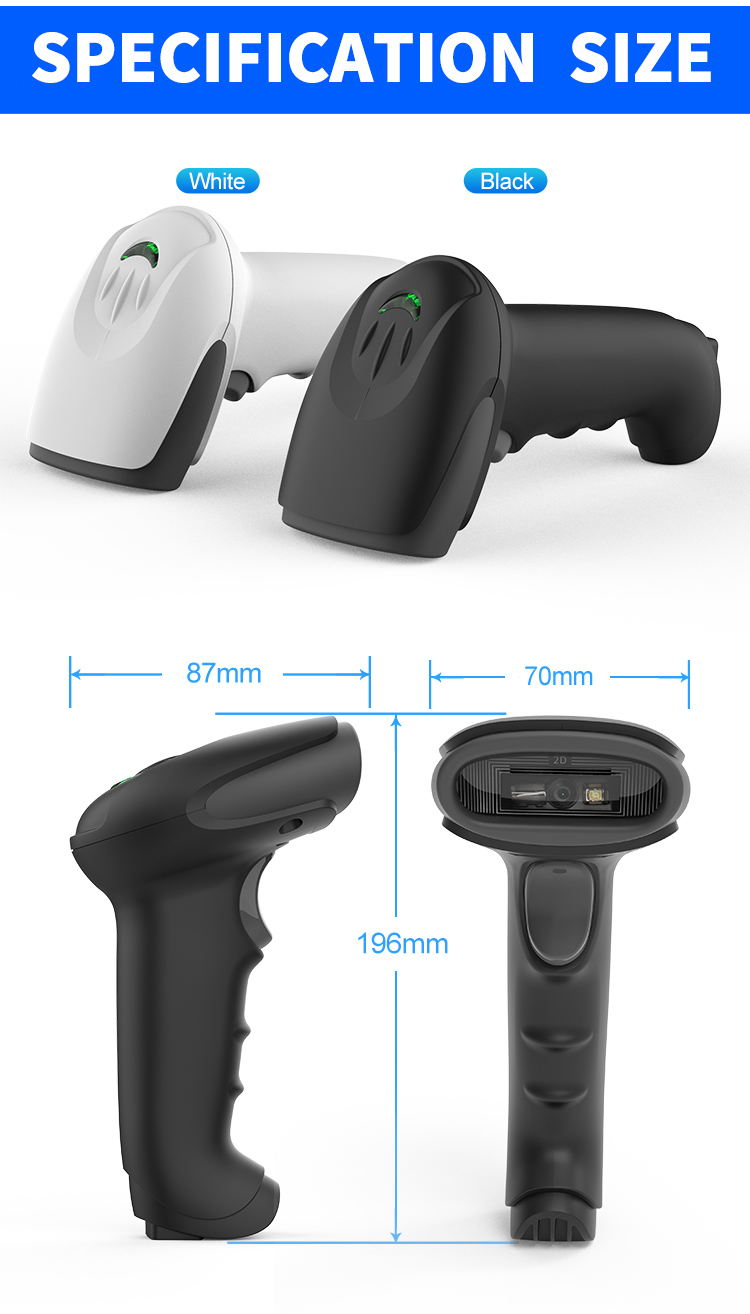

| Size | L*W*H：170 * 70 * 88（unit:mm） | ||||||
| Color | Grayish white;Black | ||||||
| Performance Parameter | |||||||
| Interface | USB,（RS232 can be customized） | ||||||

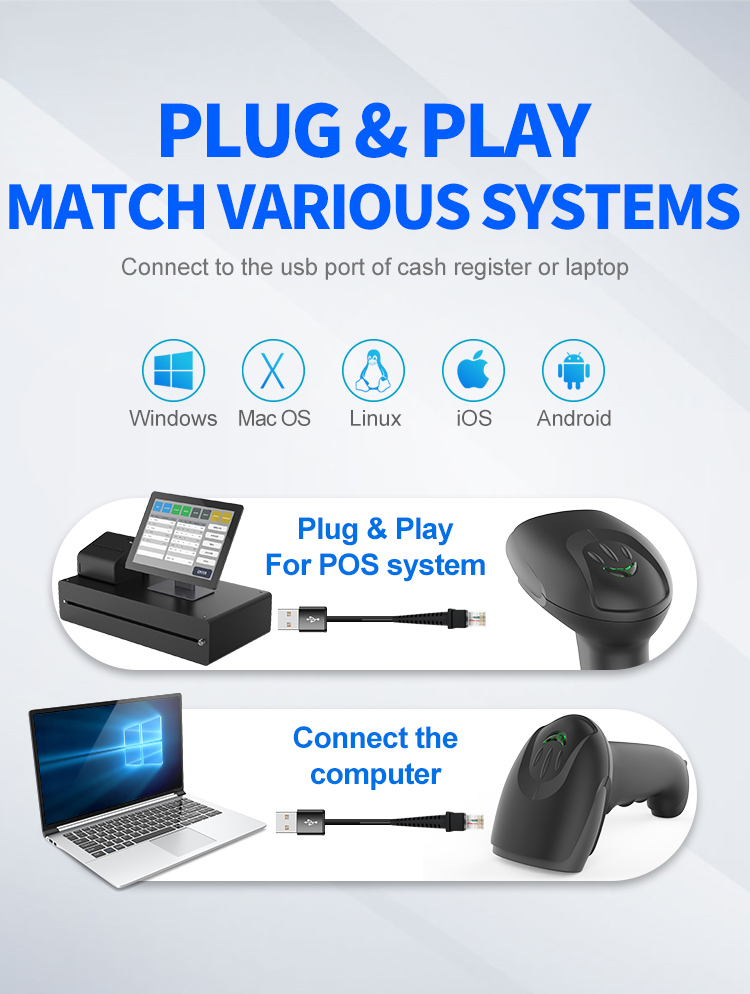

| System Supported | Linux，Android，Windows XP、7、8、10，MAC | ||||||
| Language Supported | US English; Belgium; Finland; France; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey F; Turkey Q; Japan;etc. (Support International language) | ||||||
| Sensor | Planar CMOS sensor 640*480 | ||||||
| Light Source | Red LED(Aiming)+White LED(lighting) | ||||||

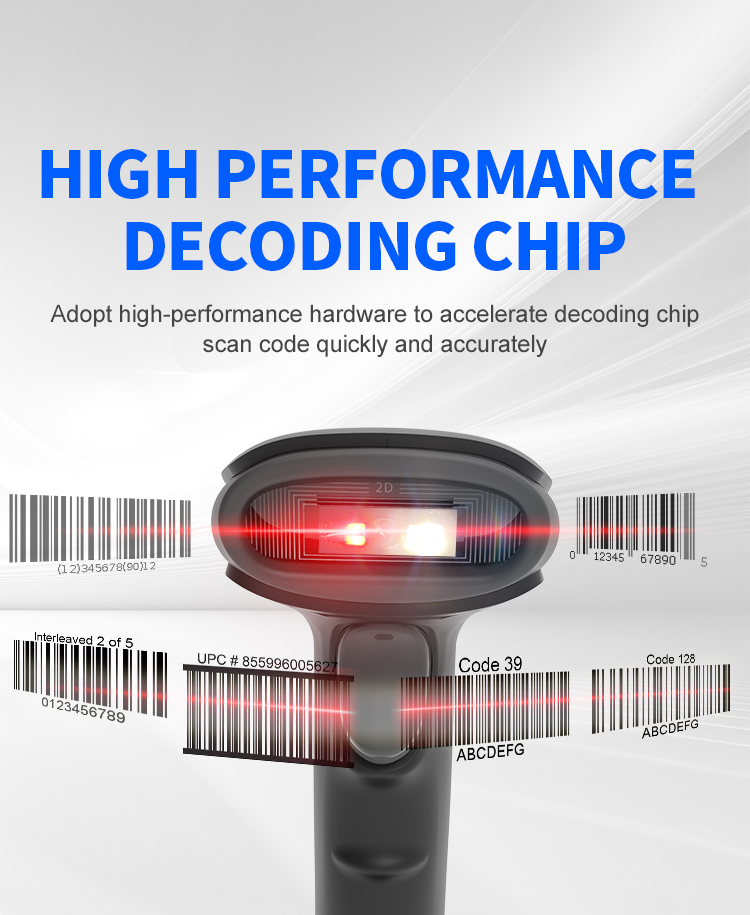

| Processor | 32-bit ARM MCU + BGA | ||||||
| Motion tolerance | QR： 25cm/sec | ||||||
| Resolution | 5mil | ||||||
| Bit Error Rate | 1/5000000 | ||||||
| Reading Mode | Image | ||||||
| Trigger Mode | Manual ；Continuous scanning;Auto-sensing | ||||||
| Prompt Mode | Buzzer, Indicator Light（LED） | ||||||
| Print Contrast | 25% | ||||||
| Decoding Capability | 1D | ●Code25-Interleaved ●Code25-Standard ●Code25-Matri ●Code39-Regular ●Code39-FullASCII ●Code32 ●Code93-Regular ●Code93-FullASCII ●Code128 ●EAN/GSL/UCC-128Auto ●Codabar ●MSI ●EAN/JAN-13 ●UPC-A ●JAN-8 ●Code11 ●UPCE0 | |||||
| 2D | ◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417 | ||||||
| Scanning Angle | Roll360°，Pitch45°，Yew45° | ||||||
| Scanning Depth | Code39 10mil：6cm - 25cm QR 10mil：4cm - 25cm | ||||||
| Environment Parameter | |||||||
| IP Grade | IP54 | ||||||
| Operating Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Storage Temp. | 0 to 50℃ / 32 to 122℉ | ||||||
| Operating Humidity | 20% to 85%（No Condensation） | ||||||
| Storage Humidity | 20% to 85%（No Condensation） | ||||||
| ESD Protection | 15KV air discharge | ||||||

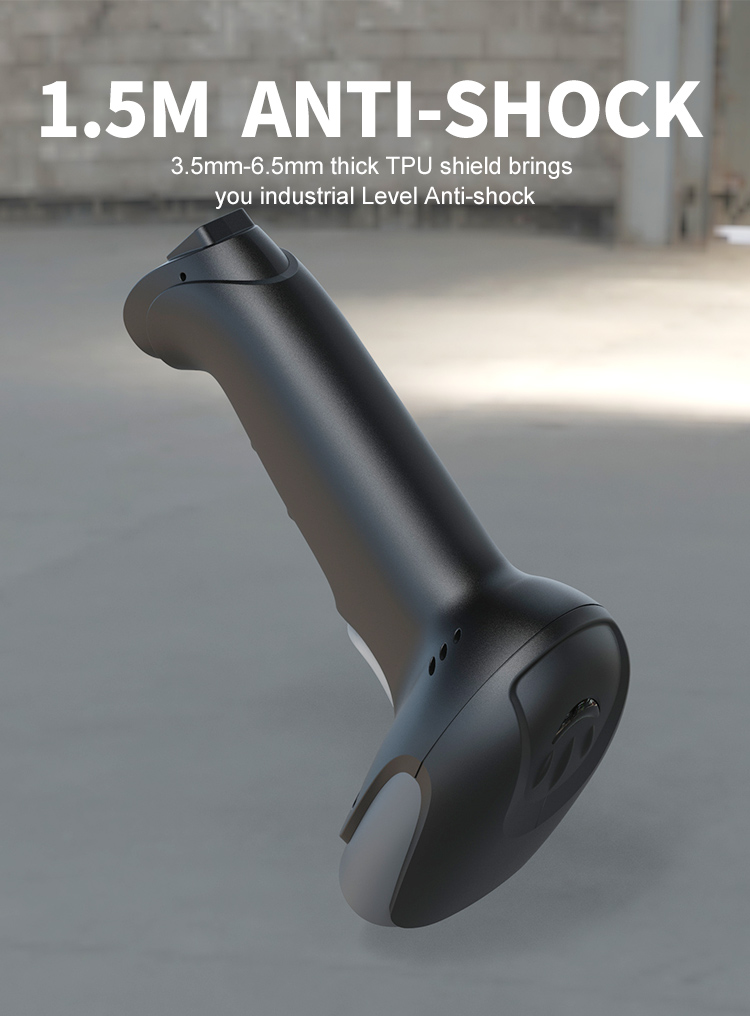

| Shock Resistance | 1.5m free fall on concrete surface | ||||||
